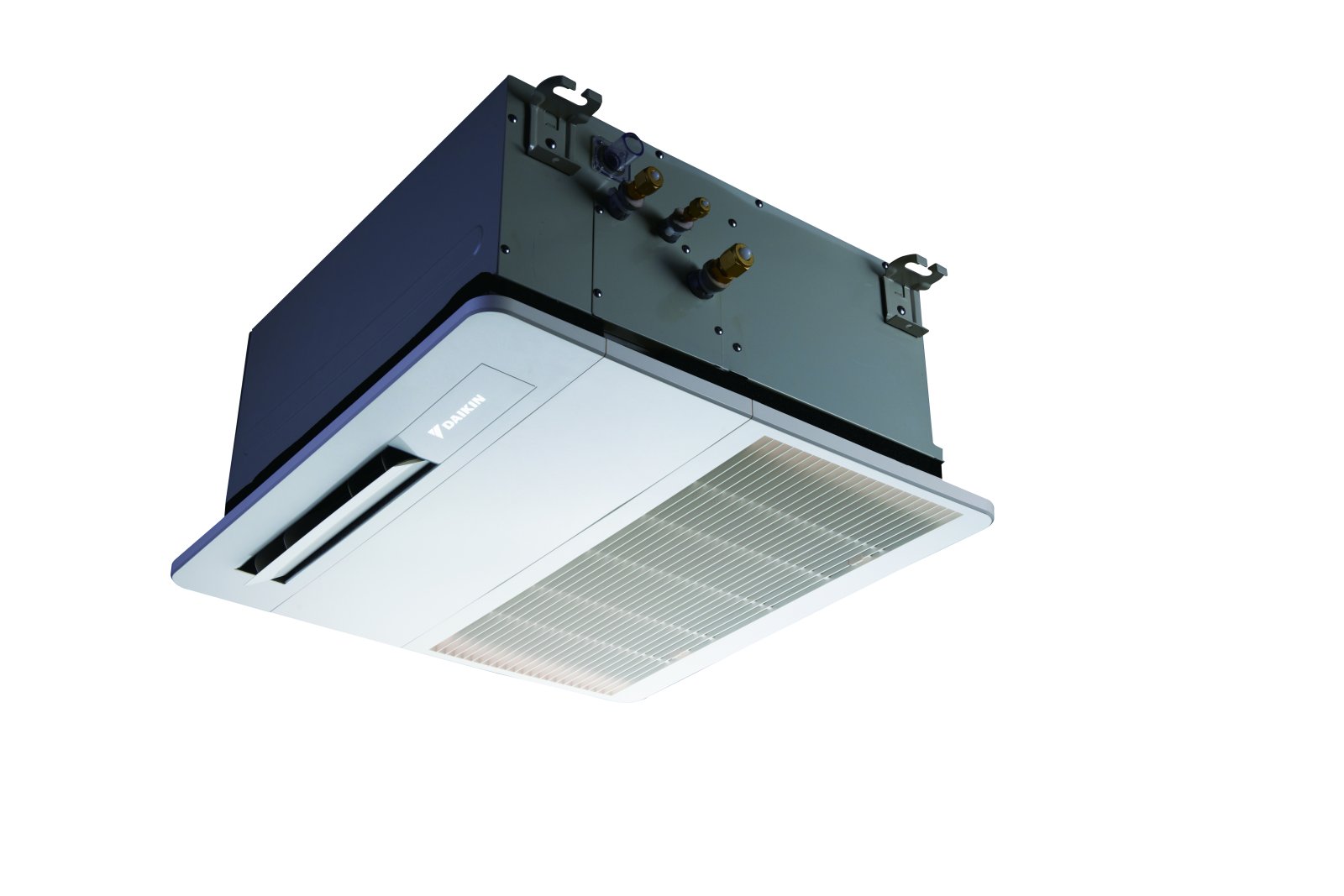

Moisture Control Closet Ceiling Mounted Cassette
VRV Home
A compact design suited to closets that uses a dual heat-exchange structure to keep clothes dry and fresh.
Gallery
Unit photos and real installations.
Specifications
| Parameter / model | FPECQ20AV1 |
|---|---|
| Model Name | FPECQ20AV1 |
| Power Supply (V/Ph/Hz) | 220-240V/1Phase/50Hz |
| Cooling Capacity (Kw) | 2.2 |
| Power Consumption · With Water Drain Pump (W) | 54 |
| Air Flow Rate (Hi/Med Hi/Med/Mid Lo/Lo) (m3/min) | 7/6/5/4/3 |
| Dimension · Unit Dimention (HxWxD) (mm) | 230 x 555 x 540 |
| Dimension · Panel Dimension (HxWxD) (mm) | 60 x 625 x 640 |
| Dimension · Discharge Dimension (WxD) (mm) | 320 x 60 |
| Unit Weight (Body/Panel) (kg) | 18/2.5 |
| Sound Level (Hi/Med Hi/Med/Mid Lo/Low) (dB(A)) | 42/38/34/29/25 |
| Piping Connections · Liquid Pipe/Gas Pipe (mm) | φ6.4/φ12.7 |
| Piping Connections · High and Low Pressure Pipe (mm) | φ9.5 |
| Piping Connections · Condensate Drain Pipe (mm) | PVC26(0.Dφ26/I.D.φ20) |
| Decorative Panel | BYEBP20W1F |
| Wired Remote Controller | BRC1E642 |
Other products

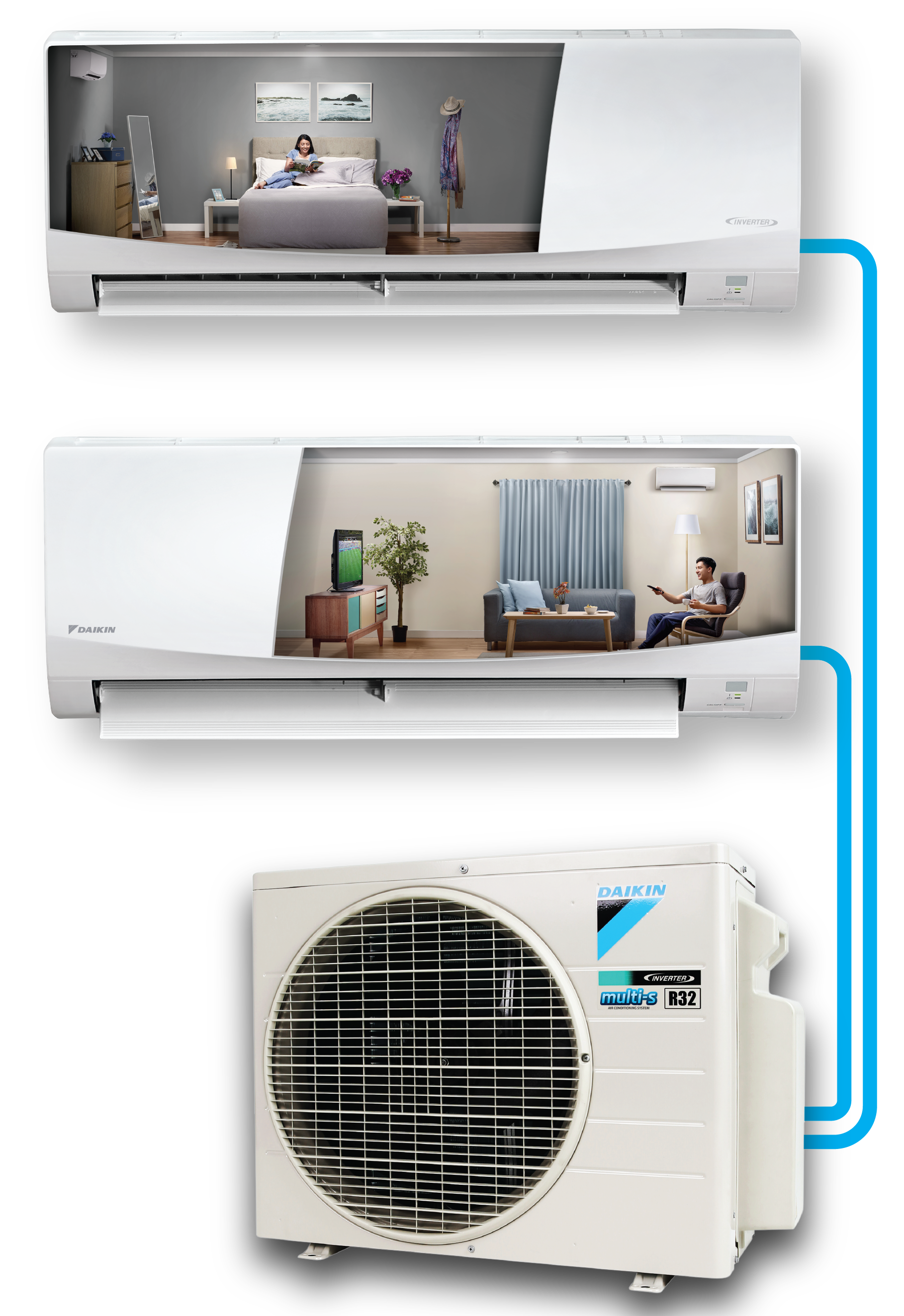

Multi-S 2 Connection
Energy Saving AC for 2 Rooms
Fulfill the need for residential air conditioning in Indonesia, DAIKIN introduces the Multi-S 2 system. It offers three key advantages: space saving, energy saving, and low power consumption. A single outdoor unit can operate two indoor units simultaneously while consuming just 380 watts of power (Low Watt Mode, Level 2).

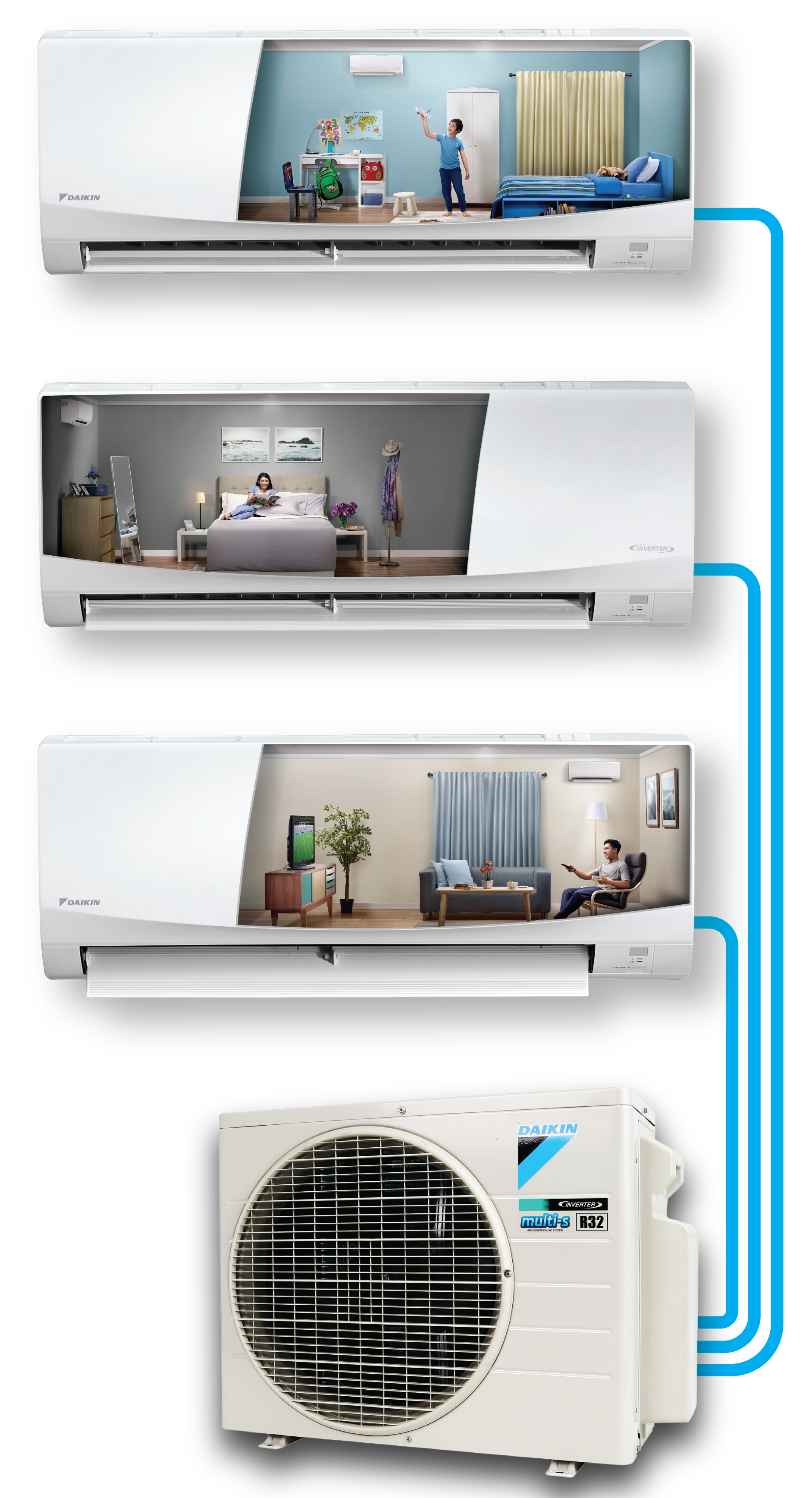

Multi-S 3 Connection
Energy Saving AC for 3 Rooms
Fulfill the demand for housing in Indonesia, Daikin has introduced the Multi-S 3-connection system. It offers three key advantages: space efficiency, energy efficiency, and electricity savings. A single outdoor unit can operate three indoor units simultaneously while consuming 800 Watts of power (Low Watt Mode, Level 2).

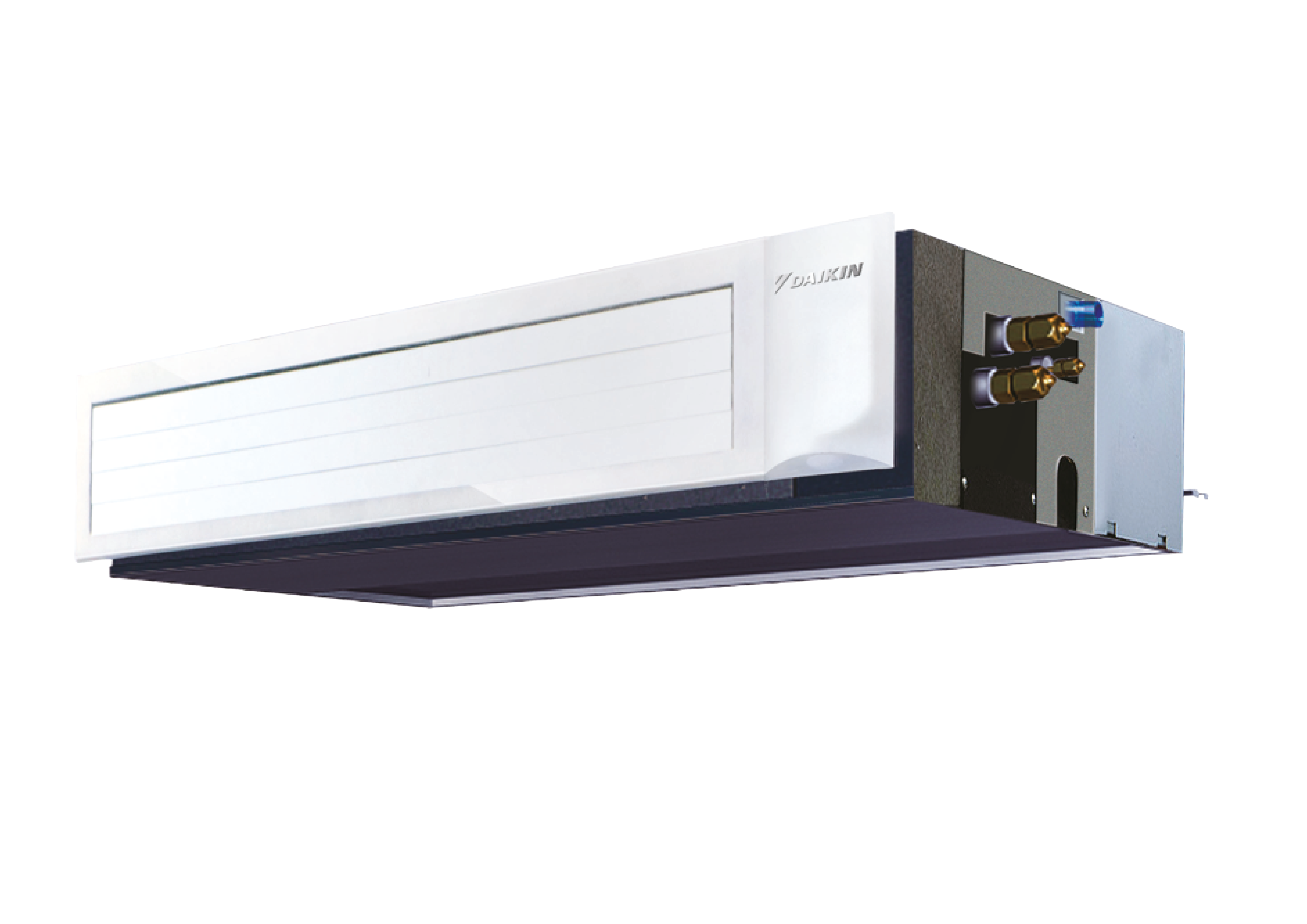

3Di+ Moisture Control Intelligent 3D Air Flow Ceiling Mounted Duct
Indoor - 3Di+
DAIKIN 3Di+ is equipped with dual fan and dual valve technology to achieve indoor temperature and humidity control. So that the temperature in the room is not only comfortable, but the humidity in the room is also maintained

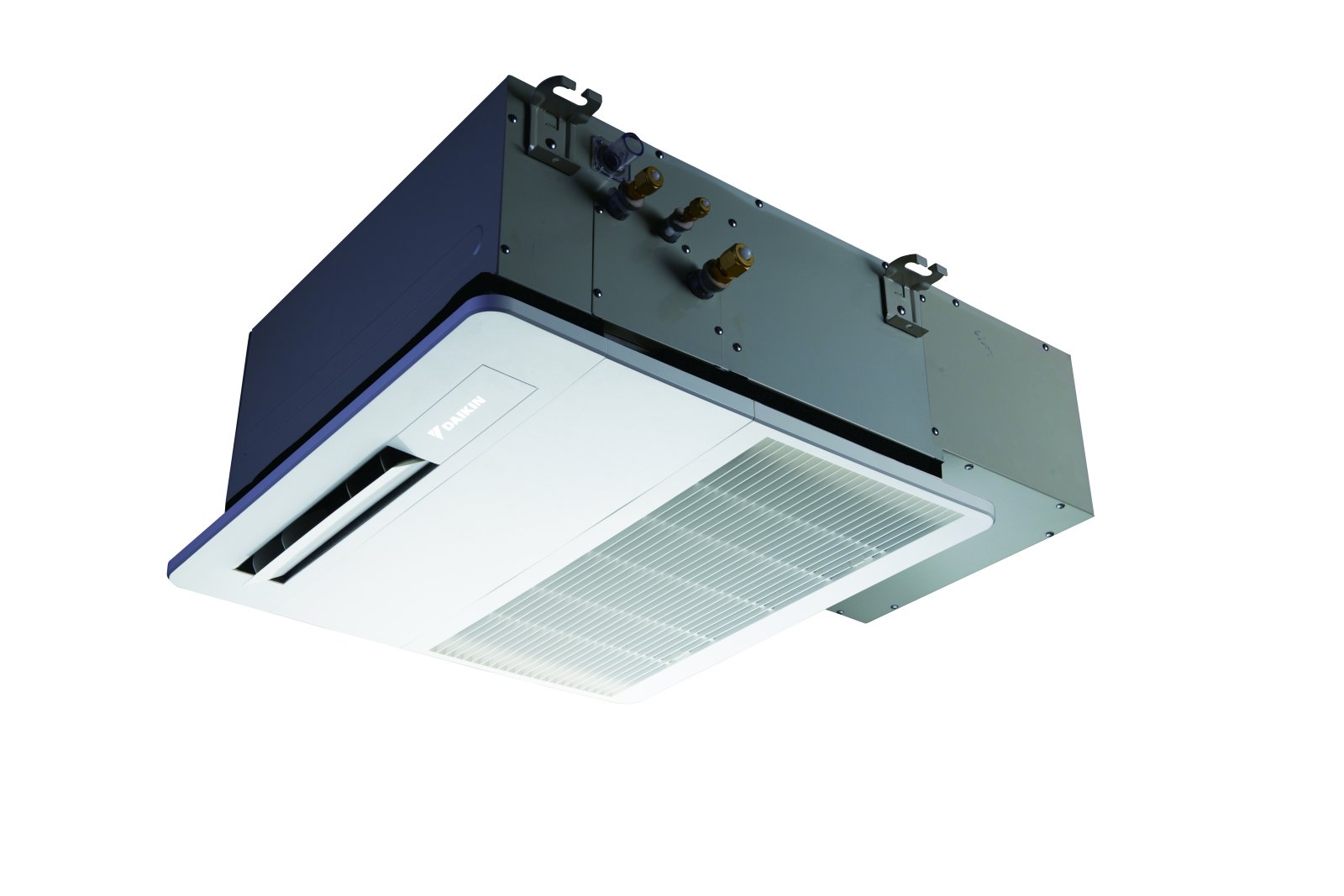

Ventilating Moisture Control Bathroom Ceiling Mounted Cassette
Indoor - Bathroom
Designed for cooling comfort at home, especially in the bathroom. Its ventilation quickly removes humidity and odors and dries the room, effectively minimizing mold growth.
Where to buy
Buy through the official Daikin dealer network, or talk to a consultant.
