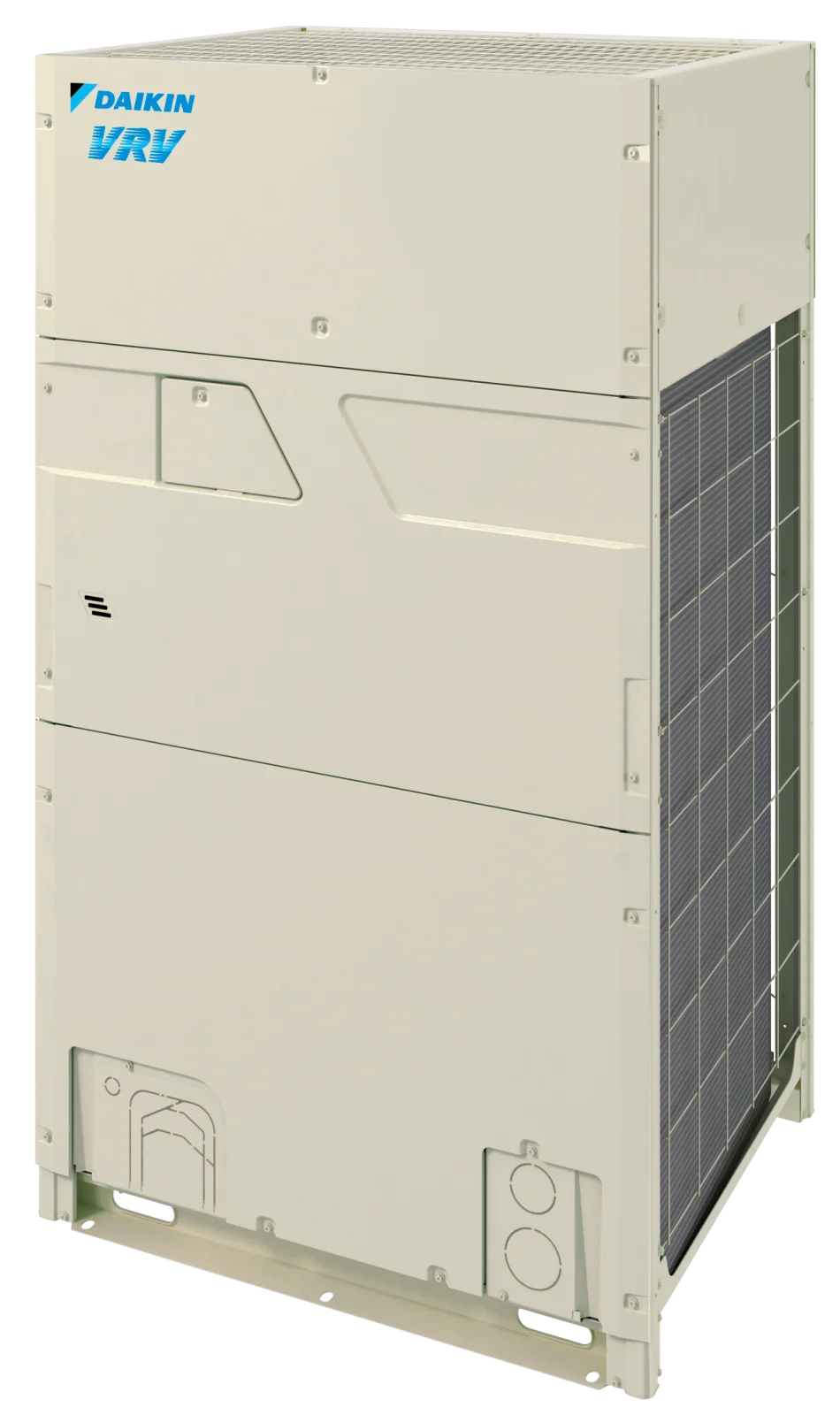

VRV 6X
VRV Commercial
New heights in energy efficiency during actual operation
The VRV 6X series features new models specially developed for higher efficiency. All compressors used in outdoor units are new scroll compressors designed to enhance energy efficiency.
- Capacity
- 6 – 60 PK
- Technology
- Inverter
Key Features
Energy Saving
Reliability
SilverX
Technical Specifications
| Parameter | RXUQ6BY14 | RXUQ8BY14 | RXUQ10BY14 | RXUQ12BY14 | RXUQ14BY14 | RXUQ16BY14 | RXUQ18BY14 | RXUQ20BY14 | RXUQ22BY14 | RXUQ24BY14 | RXUQ26BY14 | RXUQ28BY14 | RXUQ30BY14 | RXUQ32BY14 | RXUQ34BY14 | RXUQ36BY14 | RXUQ38BY14 | RXUQ40BY14 | RXUQ42BY14 | RXUQ44BY14 | RXUQ46BY14 | RXUQ48BY14 | RXUQ50BY14 | RXUQ52BY14 | RXUQ54BY14 | RXUQ56BY14 | RXUQ58BY14 | RXUQ60BY14 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Class PK | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 24 | 26 | 28 | 30 | 32 | 34 | 36 | 38 | 40 | 42 | 44 | 46 | 48 | 50 | 52 | 54 | 56 | 58 | 60 |
| Model Name | RXUQ6BY14 | RXUQ8BY14 | RXUQ10BY14 | RXUQ12BY14 | RXUQ14BY14 | RXUQ16BY14 | RXUQ18BY14 | RXUQ20BY14 | RXUQ22BY14 | RXUQ24BY14 | RXUQ26BY14 | RXUQ28BY14 | RXUQ30BY14 | RXUQ32BY14 | RXUQ34BY14 | RXUQ36BY14 | RXUQ38BY14 | RXUQ40BY14 | RXUQ42BY14 | RXUQ44BY14 | RXUQ46BY14 | RXUQ48BY14 | RXUQ50BY14 | RXUQ52BY14 | RXUQ54BY14 | RXUQ56BY14 | RXUQ58BY14 | RXUQ60BY14 |
| Unit Combination | - | - | - | - | - | - | - | - | RXUQ10BY14 + RXUQ12BY14 | RXUQ12BY14 + RXUQ12BY14 | RXUQ12BY14 + RXUQ14BY14 | RXUQ12BY14 + RXUQ16BY14 | RXUQ12BY14 + RXUQ18BY14 | RXUQ12BY14 + RXUQ20BY14 | RXUQ14BY14 + RXUQ20BY14 | RXUQ16BY14 + RXUQ20BY14 | RXUQ18BY14 + RXUQ20BY14 | RXUQ20BY14 + RXUQ20BY14 | RXUQ12BY14 + RXUQ12BY14 + RXUQ18BY14 | RXUQ12BY14 + RXUQ12BY14 + RXUQ20BY14 | RXUQ12BY14 + RXUQ14BY14 + RXUQ20BY14 | RXUQ12BY14 + RXUQ16BY14 + RXUQ20BY14 | RXUQ12BY14 + RXUQ18BY14 + RXUQ20BY14 | RXUQ12BY14 + RXUQ20BY14 + RXUQ20BY14 | RXUQ14BY14 + RXUQ20BY14 + RXUQ20BY14 | RXUQ16BY14 + RXUQ20BY14 + RXUQ20BY14 | RXUQ18BY14 + RXUQ20BY14 + RXUQ20BY14 | RXUQ20BY14 + RXUQ20BY14 + RXUQ20BY14 |
| Power Supply | 3 Phase, 4 Wire System, 380-415 V, 50 Hz | 3 Phase, 4 Wire System, 380-415 V, 50 Hz | 3 Phase, 4 Wire System, 380-415 V, 50 Hz | 3 Phase, 4 Wire System, 380-415 V, 50 Hz | 3 Phase, 4 Wire System, 380-415 V, 50 Hz | 3 Phase, 4 Wire System, 380-415 V, 50 Hz | 3 Phase, 4 Wire System, 380-415 V, 50 Hz | 3 Phase, 4 Wire System, 380-415 V, 50 Hz | 3 Phase, 4 Wire System, 380-415 V, 50 Hz | 3 Phase, 4 Wire System, 380-415 V, 50 Hz | 3 Phase, 4 Wire System, 380-415 V, 50 Hz | 3 Phase, 4 Wire System, 380-415 V, 50 Hz | 3 Phase, 4 Wire System, 380-415 V, 50 Hz | 3 Phase, 4 Wire System, 380-415 V, 50 Hz | 3 Phase, 4 Wire System, 380-415 V, 50 Hz | 3 Phase, 4 Wire System, 380-415 V, 50 Hz | 3 Phase, 4 Wire System, 380-415 V, 50 Hz | 3 Phase, 4 Wire System, 380-415 V, 50 Hz | 3 Phase, 4 Wire System, 380-415 V, 50 Hz | 3 Phase, 4 Wire System, 380-415 V, 50 Hz | 3 Phase, 4 Wire System, 380-415 V, 50 Hz | 3 Phase, 4 Wire System, 380-415 V, 50 Hz | 3 Phase, 4 Wire System, 380-415 V, 50 Hz | 3 Phase, 4 Wire System, 380-415 V, 50 Hz | 3 Phase, 4 Wire System, 380-415 V, 50 Hz | 3 Phase, 4 Wire System, 380-415 V, 50 Hz | 3 Phase, 4 Wire System, 380-415 V, 50 Hz | 3 Phase, 4 Wire System, 380-415 V, 50 Hz |
| Cooling Capacity Btu/h | 54,600 | 76,400 | 95,500 | 114,000 | 136,000 | 154,000 | 171,000 | 191,000 | 210,000 | 229,000 | 251,000 | 268,000 | 285,000 | 305,000 | 328,000 | 345,000 | 362,000 | 382,000 | 399,000 | 420,000 | 440,000 | 457,000 | 474,000 | 495,000 | 519,000 | 536,000 | 553,000 | 573,000 |
| Cooling Capacity kW | 16.0 | 22.4 | 28.0 | 33.5 | 40.0 | 45.0 | 50.0 | 56.0 | 61.5 | 67.0 | 73.5 | 78.5 | 83.5 | 89.5 | 96.0 | 101 | 106 | 112 | 117 | 123 | 129 | 134 | 139 | 145 | 152 | 157 | 162 | 168 |
| Power Consumption | 2.98 | 4.19 | 5.48 | 7.31 | 8.40 | 9.68 | 11.4 | 12.8 | 12.8 | 14.7 | 15.8 | 17.0 | 18.8 | 20.2 | 21.2 | 22.5 | 24.2 | 25.6 | 26.1 | 27.5 | 28.6 | 29.8 | 31.6 | 33.0 | 34.0 | 35.3 | 37.0 | 38.4 |
| Capacity Control % | 19 - 100 | 19 - 100 | 13 - 100 | 13 - 100 | 10 - 100 | 9 - 100 | 9 - 100 | 7 - 100 | 7 - 100 | 7 - 100 | 6 - 100 | 5 - 100 | 5 - 100 | 5 - 100 | 4 - 100 | 4 - 100 | 4 - 100 | 4 - 100 | 4 - 100 | 3 - 100 | 3 - 100 | 3 - 100 | 3 - 100 | 3 - 100 | 3 - 100 | 3 - 100 | 3 - 100 | 2 - 100 |
| EER (Outdoor) | 5.37 | 5.35 | 5.11 | 4.58 | 4.76 | 4.65 | 4.39 | 4.38 | 4.81 | 4.58 | 4.68 | 4.62 | 4.46 | 4.45 | 4.53 | 4.49 | 4.38 | 4.38 | 4.50 | 4.49 | 4.54 | 4.51 | 4.43 | 4.42 | 4.47 | 4.45 | 4.38 | 4.38 |
| Casing Color | Ivory White | Ivory White | Ivory White | Ivory White | Ivory White | Ivory White | Ivory White | Ivory White | Ivory White | Ivory White | Ivory White | Ivory White | Ivory White | Ivory White | Ivory White | Ivory White | Ivory White | Ivory White | Ivory White | Ivory White | Ivory White | Ivory White | Ivory White | Ivory White | Ivory White | Ivory White | Ivory White | Ivory White |
| Compressor · Type | Hermetically sealed scroll type | Hermetically sealed scroll type | Hermetically sealed scroll type | Hermetically sealed scroll type | Hermetically sealed scroll type | Hermetically sealed scroll type | Hermetically sealed scroll type | Hermetically sealed scroll type | Hermetically sealed scroll type | Hermetically sealed scroll type | Hermetically sealed scroll type | Hermetically sealed scroll type | Hermetically sealed scroll type | Hermetically sealed scroll type | Hermetically sealed scroll type | Hermetically sealed scroll type | Hermetically sealed scroll type | Hermetically sealed scroll type | Hermetically sealed scroll type | Hermetically sealed scroll type | Hermetically sealed scroll type | Hermetically sealed scroll type | Hermetically sealed scroll type | Hermetically sealed scroll type | Hermetically sealed scroll type | Hermetically sealed scroll type | Hermetically sealed scroll type | Hermetically sealed scroll type |
| Compressor · Motor Output Kw | 2.4 | 3.3 | 3.7 | 4.5 | 2.9 + 3.2 | 3.3 + 3.6 | 3.8 + 4.1 | 4.3 + 4.6 | 3.7 + 4.5 | 4.5 + 4.5 | 4.5 + 2.9 + 3.2 | 4.5 + 3.3 + 3.6 | 4.6 + 3.8 + 4.1 | 4.5 + 4.3 + 4.6 | 2.9 + 3.2 + 4.3 + 4.6 | 3.3 + 3.6 + 4.3 + 4.6 | 3.8 + 4.1 + 4.3 + 4.6 | 4.3 + 4.6 + 4.3 + 4.6 | 4.5 + 4.5 + 3.8 + 4.1 | 4.5 + 4.5 + 4.3 + 4.6 | 4.5 + 2.9 + 3.2 + 4.3 +4.6 | 4.5 + 3.3 + 3.6 + 4.3 + 4.6 | 4.5 + 3.8 + 4.1 + 4.3 + 4.6 | 4.5 + 4.3 + 4.6 + 4.3 + 4.6 | 2.9 + 3.2 + 4.3 + 4.6 + 4.3 + 4.6 | 3.3 + 3.6 + 4.3 + 4.6 + 4.3 + 4.6 | 3.8 + 4.1 + 4.3 + 4.6 + 4.3 + 4.6 | 4.3 + 4.6 + 4.3 + 4.6 + 4.3 + 4.6 |
| Fan · Airflow Rate m²/mm | 126 | 153 | 176 | 195 | 195 | 217 | 243 | 294 | 176 + 195 | 195 + 195 | 195 + 195 | 195 + 217 | 195 + 243 | 195 + 294 | 195 + 294 | 217 + 294 | 243 + 294 | 294 + 294 | 195 + 195 + 243 | 196 + 195 + 294 | 196 + 195 + 294 | 195 + 217 + 294 | 195 + 243 + 294 | 195 + 294 + 294 | 195 + 294 + 294 | 217 + 294 + 294 | 243 + 294 + 294 | 294 + 294 + 294 |
| Dimensions (H x W x D) mm | 1,660 x 930 x 765 | 1,660 x 1,240 x 765 | 1,660 x 1,240 x 765 | 1,660 x 1,240 x 765 | 1,660 x 1,240 x 765 | 1,660 x 1,240 x 765 | 1,660 x 1,240 x 765 | 1,660 x 1,240 x 765 | (1,660 x 1,240 x 765) + (1,660 x 1,240 x 765) | (1,660 x 1,240 x 765) + (1,660 x 1,240 x 765) | (1,660 x 1,240 x 765) + (1,660 x 1,240 x 765) | (1,660 x 1,240 x 765) + (1,660 x 1,240 x 765) | (1,660 x 1,240 x 765) + (1,660 x 1,240 x 765) | (1,660 x 1,240 x 765) + (1,660 x 1,240 x 765) | (1,660 x 1,240 x 765) + (1,660 x 1,240 x 765) | (1,660 x 1,240 x 765) + (1,660 x 1,240 x 765) | (1,660 x 1,240 x 765) + (1,660 x 1,240 x 765) | (1,660 x 1,240 x 765) + (1,660 x 1,240 x 765) | (1,660 x 1,240 x 765) + (1,660 x 1,240 x 765) + (1,660 x 1,240 x 765) | (1,660 x 1,240 x 765) + (1,660 x 1,240 x 765) + (1,660 x 1,240 x 765) | (1,660 x 1,240 x 765) + (1,660 x 1,240 x 765) + (1,660 x 1,240 x 765) | (1,660 x 1,240 x 765) + (1,660 x 1,240 x 765) + (1,660 x 1,240 x 765) | (1,660 x 1,240 x 765) + (1,660 x 1,240 x 765) + (1,660 x 1,240 x 765) | (1,660 x 1,240 x 765) + (1,660 x 1,240 x 765) + (1,660 x 1,240 x 765) | (1,660 x 1,240 x 765) + (1,660 x 1,240 x 765) + (1,660 x 1,240 x 765) | (1,660 x 1,240 x 765) + (1,660 x 1,240 x 765) + (1,660 x 1,240 x 765) | (1,660 x 1,240 x 765) + (1,660 x 1,240 x 765) + (1,660 x 1,240 x 765) | (1,660 x 1,240 x 765) + (1,660 x 1,240 x 765) + (1,660 x 1,240 x 765) |
| Net Weight kg | 216 | 216 | 236 | 236 | 310 | 310 | 311 | 311 | 236 + 236 | 236 + 236 | 236 + 310 | 236 + 310 | 236 + 311 | 236 + 311 | 310 + 311 | 310 + 311 | 311 + 311 | 311 + 311 | 236 + 236 + 311 | 236 + 236 + 311 | 236 + 310 + 311 | 236 + 310 + 311 | 236 + 311 + 11 | 236 + 311 + 11 | 310 + 311 + 311 | 310 + 311 + 311 | 311 + 311 +311 | 311 + 311 +311 |
| Noise Level dB (A) | 54 | 56 | 56 | 58 | 59 | 59 | 62 | 65 | 61 | 62 | 62 | 62 | 64 | 66 | 66 | 66 | 67 | 69 | 65 | 67 | 67 | 67 | 68 | 69 | 69 | 69 | 69 | 70 |
| Cooling Operating Range °CDB | 10 to 52 | 10 to 52 | 10 to 52 | 10 to 52 | 10 to 52 | 10 to 52 | 10 to 52 | 10 to 52 | 10 to 52 | 10 to 52 | 10 to 52 | 10 to 52 | 10 to 52 | 10 to 52 | 10 to 52 | 10 to 52 | 10 to 52 | 10 to 52 | 10 to 52 | 10 to 52 | 10 to 52 | 10 to 52 | 10 to 52 | 10 to 52 | 10 to 52 | 10 to 52 | 10 to 52 | 10 to 52 |
| Refrigerant · Type | R-410A | R-410A | R-410A | R-410A | R-410A | R-410A | R-410A | R-410A | R-410A | R-410A | R-410A | R-410A | R-410A | R-410A | R-410A | R-410A | R-410A | R-410A | R-410A | R-410A | R-410A | R-410A | R-410A | R-410A | R-410A | R-410A | R-410A | R-410A |
| Refrigerant · Charge Kg | 6.2 | 6.3 | 5.7 | 5.9 | 9.2 | 9.4 | 9.2 | 9.4 | 5.7 + 5.9 | 5.9 + 5.9 | 5.9 + 9.2 | 5.9 + 9.4 | 5.9 + 9.2 | 5.9 + 9.4 | 9.2 + 9.4 | 9.4 + 9.4 | 9.2 + 9.4 | 9.4 + 9.4 | 5.9 + 5.9 + 9.2 | 5.9 + 5.9 + 9.4 | 5.2 + 9.2 + 9.4 | 5.9 + 9.4 + 9.4 | 5.2 + 9.2 + 9.4 | 5.9 + 9.4 + 9.4 | 9.2 + 9.4 + 9.4 | 9.4 + 9.4 + 9.4 | 9.2 + 9.4 + 9.4 | 9.4 + 9.4 + 9.4 |
| Pipe Connection · Liquid mm | Φ 9.5 (Brazing) | Φ 12.7 (Brazing) | Φ 12.7 (Brazing) | Φ 12.7 (Brazing) | Φ 12.7 (Brazing) | Φ 12.7 (Brazing) | Φ 15.9 (Brazing) | Φ 15.9 (Brazing) | Φ 15.9 (Brazing) | Φ 15.9 (Brazing) | Φ 19.1 (Brazing) | Φ 19.1 (Brazing) | Φ 19.1 (Brazing) | Φ 19.1 (Brazing) | Φ 19.1 (Brazing) | Φ 19.1 (Brazing) | Φ 19.1 (Brazing) | Φ 19.1 (Brazing) | Φ 19.1 (Brazing) | Φ 19.1 (Brazing) | Φ 19.1 (Brazing) | Φ 19.1 (Brazing) | Φ 19.1 (Brazing) | Φ 19.1 (Brazing) | Φ 19.1 (Brazing) | Φ 19.1 (Brazing) | Φ 19.1 (Brazing) | Φ 19.1 (Brazing) |
| Pipe Connection · Gas mm | Φ 19.1 (Brazing) | Φ 19.1 (Brazing) | Φ 22.2 (Brazing) | Φ 28.6 (Brazing) | Φ 28.6 (Brazing) | Φ 28.6 (Brazing) | Φ 28.6 (Brazing) | Φ 28.6 (Brazing) | Φ 28.6 (Brazing) | Φ 34.9 (Brazing) | Φ 34.9 (Brazing) | Φ 34.9 (Brazing) | Φ 34.9 (Brazing) | Φ 34.9 (Brazing) | Φ 34.9 (Brazing) | Φ 41.3 (Brazing) | Φ 41.3 (Brazing) | Φ 41.3 (Brazing) | Φ 41.3 (Brazing) | Φ 41.3 (Brazing) | Φ 41.3 (Brazing) | Φ 41.3 (Brazing) | Φ 41.3 (Brazing) | Φ 41.3 (Brazing) | Φ 41.3 (Brazing) | Φ 41.3 (Brazing) | Φ 41.3 (Brazing) | Φ 41.3 (Brazing) |
