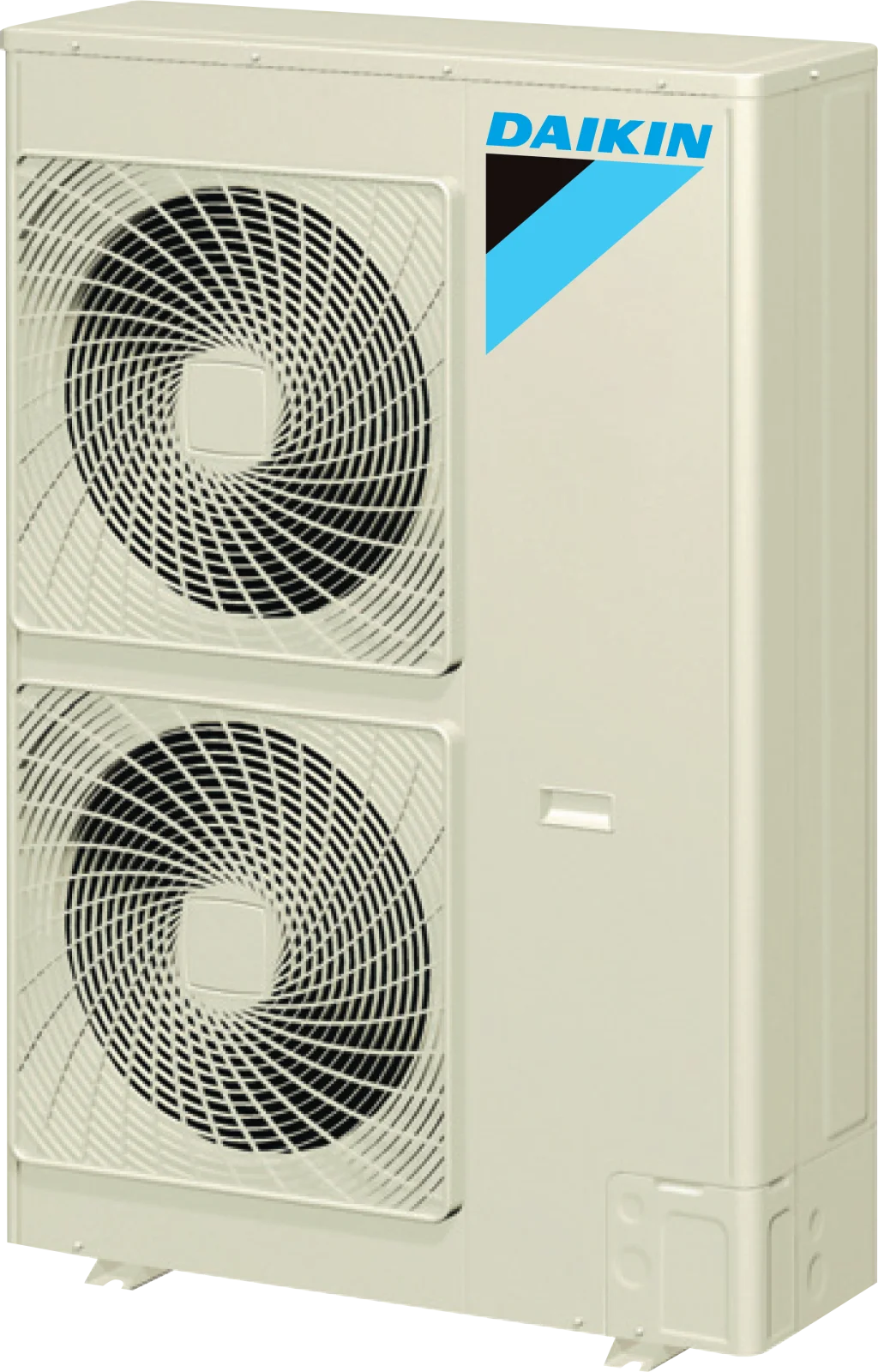

VRV IV S
VRV Commercial
Especially designed for residential houses, co-working space and shops
VRV IV S series aims to provide sufficient capacity, along with the compact size required by residential houses, cafe and shops. Outdoor units are designed to be slim and space saving to suit your needs.
- Technology
- Inverter
Key Features
Desain Kompak dan Ringan
Energy Saving
Quite Operation
Technical Specifications
| Parameter | RSUQ4AVM4 | RSUQ5AVM5 | RSUQ6AVM6 | RSUQ7AVM7 | RSUQ8AVM8 | RSUQ9AVM9 |
|---|---|---|---|---|---|---|
| Model | RSUQ4AVM4 | RSUQ5AVM5 | RSUQ6AVM6 | RSUQ7AVM7 | RSUQ8AVM8 | RSUQ9AVM9 |
| Power Supply | 1-phase, 220-240V / 220-230 V, 50/60 Hz | 1-phase, 220-240V / 220-230 V, 50/60 Hz | 3-phase, 380-415V / 380V, 50/60 Hz | 3-phase, 380-415V / 380V, 50/60 Hz | 3-phase, 380-415V / 380V, 50/60 Hz | 3-phase, 380-415V / 380V, 50/60 Hz |
| Cooling Capacity Btu/h | 38200 | 47800 | 54600 | 68200 | 76400 | 81900 |
| Cooling Capacity Kw | 11.2 | 14 | 16 | 20 | 22.4 | 24 |
| Power Consumption Kw | 2.49 | 3.44 | 4.1 | 5.46 | 6.61 | 7.21 |
| Capacity Control % | 23 to 100 | 16 to 100 | 16 to 100 | 9 to 100 | 9 to 100 | 9 to 100 |
| Color W | Ivory White (5Y7.5/1) | Ivory White (5Y7.5/1) | Ivory White (5Y7.5/1) | Ivory White (5Y7.5/1) | Ivory White (5Y7.5/1) | Ivory White (5Y7.5/1) |
| Compressor · Type | Hermetically sealed swing type | Hermetically sealed swing type | Hermetically sealed swing type | Hermetically sealed swing type | Hermetically sealed swing type | Hermetically sealed swing type |
| Compressor · Motor Output Kw | 2 | 3.1 | 3.5 | 1.9 | 3.2 | 3.8 |
| Airflow Rate m3/min | 87 | 84 | 87 | 123 | 123 | 137 |
| Dimensions (HxWxD) mm | 870 x 1, 100 x 460 | 870 x 1, 100 x 460 | 870 x 1, 100 x 460 | 870 x 1, 100 x 460 | 870 x 1, 100 x 460 | 870 x 1, 100 x 460 |
| Net Weight Kg | 95 | 98 | 98 | 115 | 115 | 115 |
| Sound Level Db(A) | 51 | 51 | 52 | 58 | 59 | 60 |
| Operation Range °CDB | -5 to 52 | -5 to 52 | -5 to 52 | -5 to 52 | -5 to 52 | -5 to 52 |
| Refrigerant · Type | R-410A | R-410A | R-410A | R-410A | R-410A | R-410A |
| Refrigerant · Charge Kg | 4 | 4.2 | 4.2 | 5.4 | 5.4 | 5.4 |
| Piping Connections · Liquid mm | Φ 9,5 (Flare) | Φ 9,5 (Flare) | Φ 9,5 (Flare) | Φ 9,5 (Flare) | Φ 9,5 (Flare) | Φ 9,5 (Flare) |
| Piping Connections · Gas mm | Φ 15,9 (Flare) | Φ 15,9 (Flare) | Φ 19,1 (Flare) | Φ 19,1 (Flare) | Φ 19,1 (Flare) | Φ 22,2 (Flare) |
