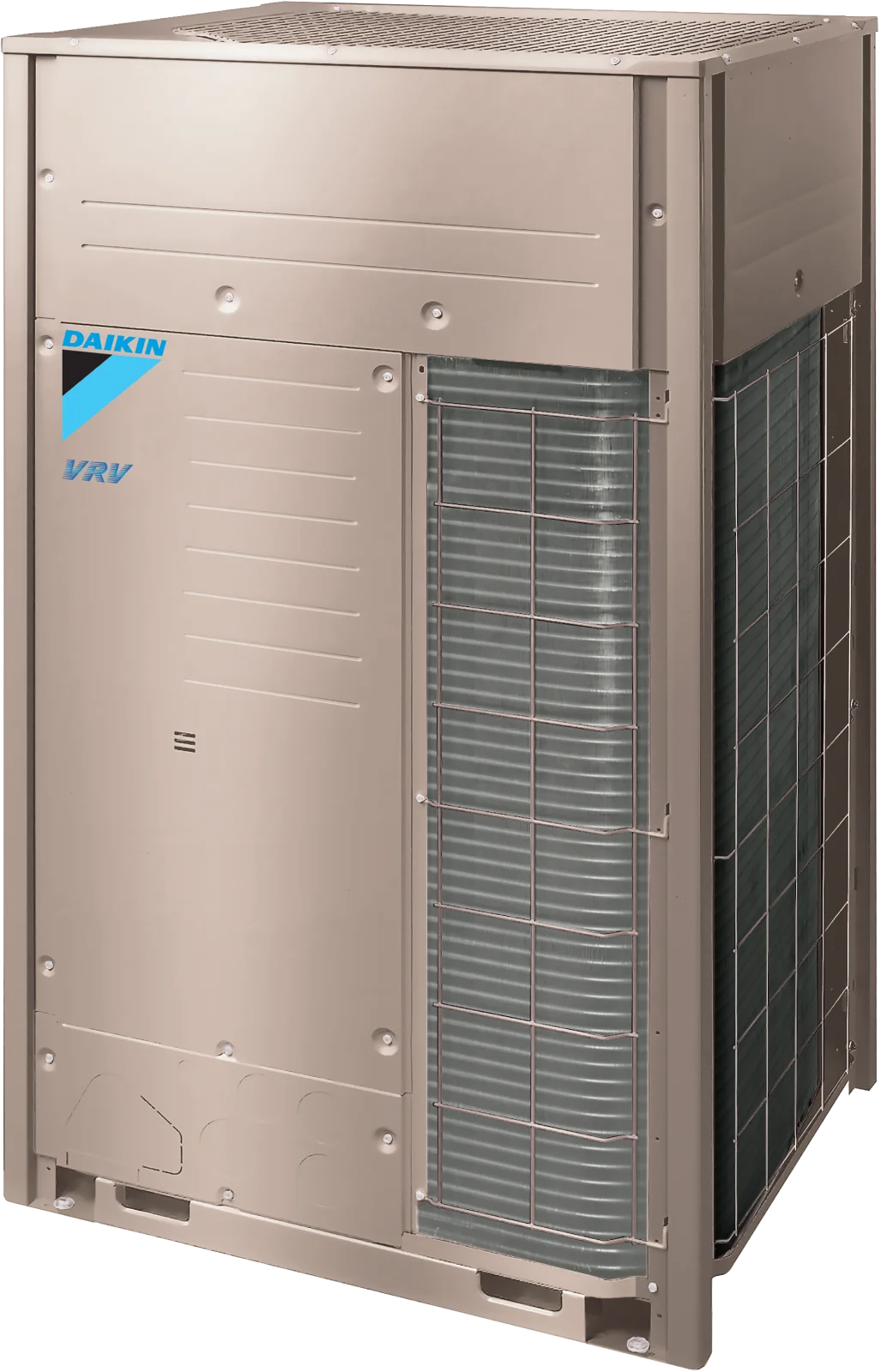

VRV Max
VRV Commercial
Great performance with anti-corrosion technology
VRV Max is the ideal choice for buildings, hotel, restaurant and public facilities requiring superior performance and corrosion resistance—particularly for structures located near the coast.
- Technology
- Inverter
Key Features
Anti-Corrosion
High Performance Technology
Automated Fin Coating Line
Technical Specifications
Anti-Corrosion Material Comparison
| Parameter | Standard Model | VRV Max |
|---|---|---|
| 1 Outer Casing | Hot dip zinc coated sheet + powder coating | Hot-dip zinc-aluminum-magnesium alloy-coated steel sheet + Primer base coating + Powder middle coating + Top coat metallic special coating (metallic brown) + Top clear special coating |
| 2 | Low Density Polyethylene (LDPE) coating | Low Density Polyethylene (LDPE) coating |
| 3 | Mild sheet with zinc-nickel plating | SUS410 + zinc-nickel plating + geomet process |
| 4 | Copper tube + Standard aluminium fin | Copper tube + Anti-corrosion aluminium fin |
| 5 | Aluminium fin + Hydrophilic anti-corrosion | Aluminium fin + High corrosion resistance aluminium fin + Primer base coating (outside area only) + Corrosion resistance coating (outside area only) |
| 6 | Hot-dip zinc-aluminum-magnesium alloy-coated steel sheet without coating | Hot dip zinc coated sheet + corrosion resistance polyurethane coating |
| 7 | Galvanized iron sheet | Hot dip zinc coated sheet + corrosion resistance polyurethane coating |
| 8 | Resin fan + resin casing motor | Resin fan + resin casing motor |
| 9 | Hot rolled sheet steel + painting | Hot rolled sheet steel + Double rust inhibitor coating with additional touch-up paint |
| 10 | Both side resin coating | Expanded both side resin coating |
Related Products
VRV 6A
Space Saving Solution
- Capacity
- 8 – 60 PK
- Power
- High Efficiency Inverter Compressor
Saves space and delivers excellent performance The VRV A series achieves high efficiency in a design that is more compact and lightweight. It also offers comfort, easy installation, and high reliability to meet the needs in various buildings. Suitable for hotel, hospital and mall.
VRV 6X
Optimal Energy Efficiency
- Capacity
- 6 – 60 PK
New heights in energy efficiency during actual operation The VRV 6X series features new models specially developed for higher efficiency. All compressors used in outdoor units are new scroll compressors designed to enhance energy efficiency.
VRV IV Q
Quick & high quality replacement use
For quick & high quality replacement use VRV IV Q series, a replacement VRV unit, can be installed using existing refrigerant piping, so renovation of the air conditioning system can be carried out quickly and smoothly. This minimizes inconveniences to activities and users in the building.
VRV IV W
Water Cooled Compact
Water cooled system suitable for tall multi-storied buildings Water cooled VRV IV W series utilize water as a heat source. The temperature of heat source water can be from 10°C to 45°C, and outdoor air temperature does not affect cooling capacity. The outside unit is compact and saves space in the machine room.
