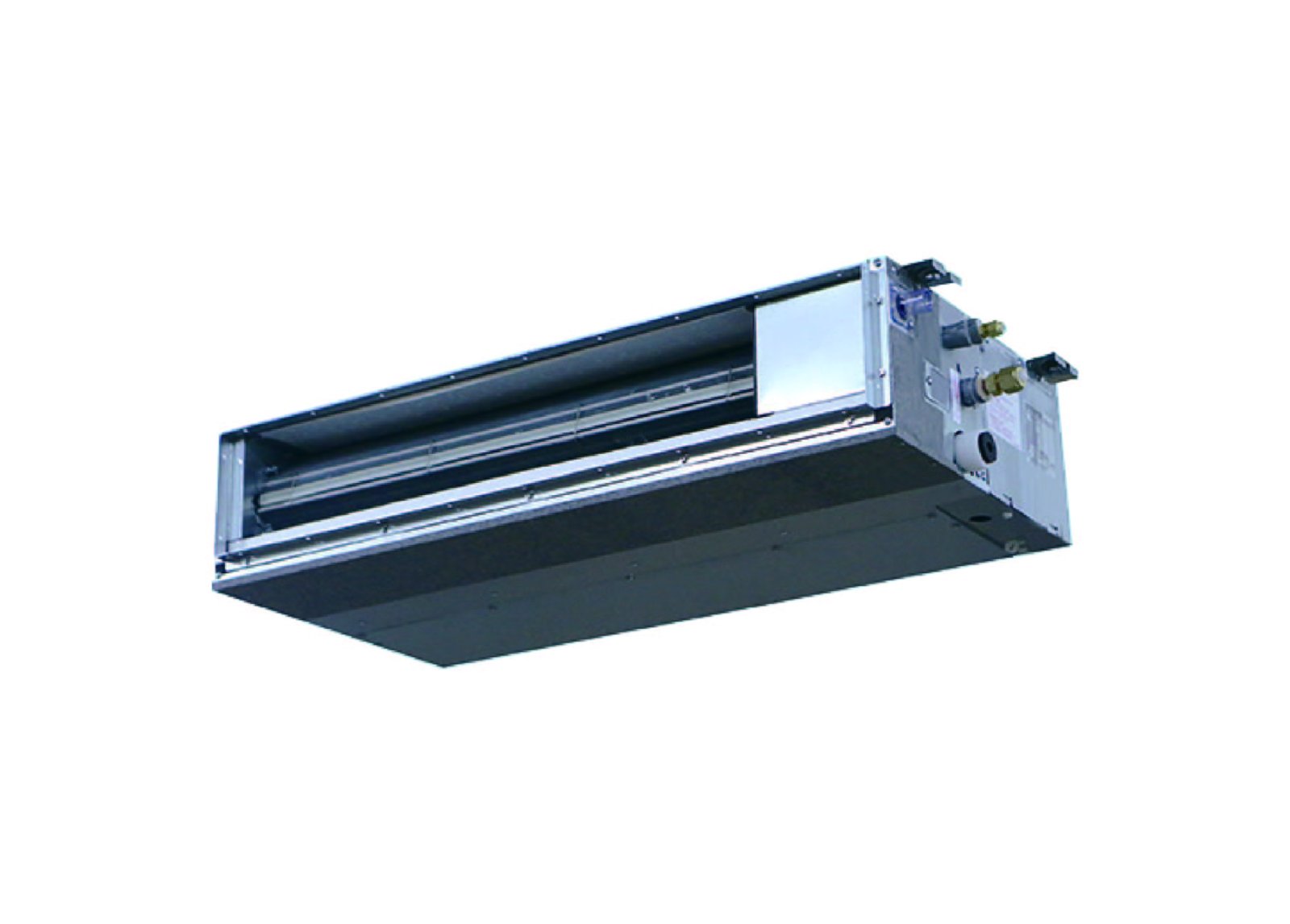

Compact Ceiling Mounted Duct
VRV Home
A compact installation only 200 mm high. This slim design suits low ceilings and is flexible for short duct connections and grille removal.
Gallery
Unit photos and real installations.
Specifications
| Parameter / model | FXDQ20SPV14 | FXDQ25SPV14 | FXDQ32SPV14 | FXDQ40SPV14 | FXDQ50SPV14 | FXDQ63SPV14 | FPDQ80APV1 | FPDQ100APV1 |
|---|---|---|---|---|---|---|---|---|
| Model Name | FXDQ20SPV14 | FXDQ25SPV14 | FXDQ32SPV14 | FXDQ40SPV14 | FXDQ50SPV14 | FXDQ63SPV14 | FPDQ80APV1 | FPDQ100APV1 |
| Power Supply (V/Ph/Hz) | 220-240V/1Phase/50Hz | 220-240V/1Phase/50Hz | 220-240V/1Phase/50Hz | 220-240V/1Phase/50Hz | 220-240V/1Phase/50Hz | 220-240V/1Phase/50Hz | 220-240V/1Phase/50Hz | 220-240V/1Phase/50Hz |
| Cooling Capacity (Kw) | 2.2 | 2.8 | 3.6 | 4.5 | 5.6 | 7.1 | 9 | 11.2 |
| Power Consumption (W) | 72 | 75 | 78 | 180 | 180 | 196 | 70 | 100 |
| Fan Mode/ Cooling Mode · Air Flow Rate (Hi/Med Hi/Med/Mid Lo/Lo) (m3/min) | 8.7/7.6/6.5 | 9/8/7 | 10/9/8 | 15/13/10.5 | 15/13/10.5 | 20/16/12.5 | 24.0/20.0/16.0 | 26.0/22.0/18.0 |
| Fan Mode/ Cooling Mode · Sound Level (Hi/Med Hi/Med/Mid Lo/Lo) (dB(A)) | 33/31/29 | 33/31/29 | 34/32/30 | 35/33/31 | 35/33/31 | 37/35/33 | 36/34/32 | 37/35/33 |
| ESP (Hi/Std) (Pa) | 30-10 | 30-10 | 30-10 | 50-20 | 50-20 | 40-20 | 40-20 | 40-20 |
| Unit Dimension (HxWxD) (mm) | 200x700x450 | 200x700x450 | 200x700x450 | 200x900x450 | 200x900x450 | 200x1,100x450 | 200 × 1610 × 560 | 200 × 1610 × 560 |
| Unit Weight (kg) | 17 | 17 | 17 | 20 | 20 | 23 | 37 | 40 |
| Piping Connections · Liquid Pipe/Gas Pipe (mm) | φ6.4/φ12.7 | φ6.4/φ12.7 | φ6.4/φ12.7 | φ6.4/φ12.7 | φ6.4/φ12.7 | φ9.5/φ15.9 | φ9.5/φ15.9 | φ9.5/φ15.9 |
| Piping Connections · Condensate Drain Pipe (mm) | PVC26(0.Dφ26/I.D.φ20) | PVC26(0.Dφ26/I.D.φ20) | PVC26(0.Dφ26/I.D.φ20) | PVC26(0.Dφ26/I.D.φ20) | PVC26(0.Dφ26/I.D.φ20) | PVC26(0.Dφ26/I.D.φ20) | PVC26(0.Dφ26/I.D.φ20) | PVC26(0.Dφ26/I.D.φ20) |
| Wired Remote Controller | BRC1E63 | BRC1E63 | BRC1E63 | BRC1E63 | BRC1E63 | BRC1E63 | BRC1E63 | BRC1E63 |
