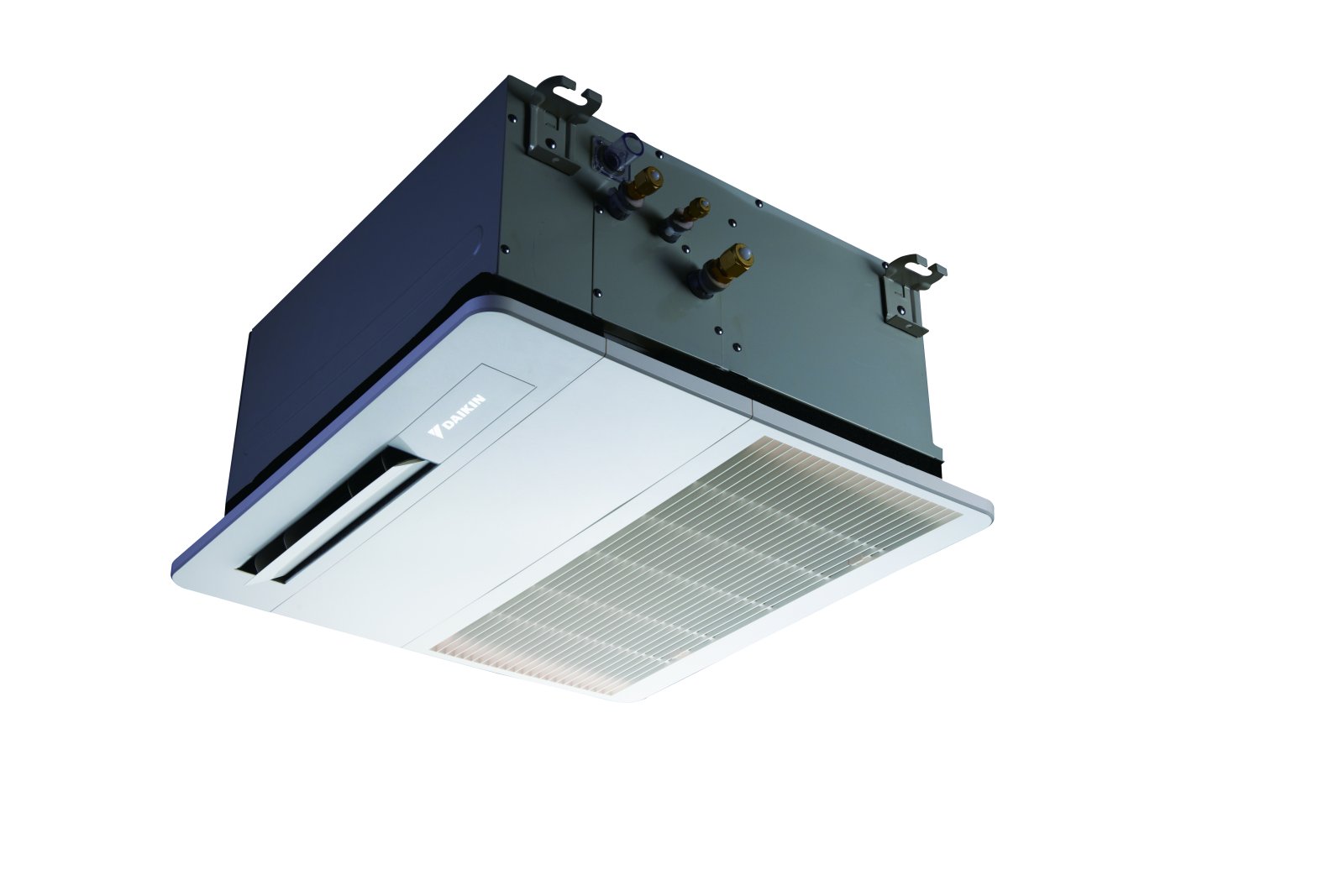

Durability Moisture Control Kitchen Ceiling Mounted Cassette
VRV Home
A new cooking experience! Creates a comfortable, cool environment while you cook with gentle airflow and fast heat removal, and resists oil to ensure a long service life.
Gallery
Unit photos and real installations.
Key features
Dry and Mold Proof
This indoor unit can run heating while the room is in use to clear oil vapor spread throughout the room, keeping the kitchen dry and free from mold.
Oil Proof and High Durability Panel
This unit is easy to clean and maintain regularly. Besides being oil-free, it is also durable for long-term use, making cooking more enjoyable
Specifications
| Parameter / model | FPEKQ20AV1 | FPEKQ28AV1 |
|---|---|---|
| Model Name | FPEKQ20AV1 | FPEKQ28AV1 |
| Power Supply (V/Ph/Hz) | 220-240V/1Phase/50Hz | 220-240V/1Phase/50Hz |
| Cooling Capacity (Kw) | 2.2 | 3.2 |
| Power Consumption (With Water Drain Pump) (W) | 54 | 54 |
| Air Flow Rate (Hi/Med Hi/Med/Mid Lo/Lo) (m3/min) | 7/3 | 8/6/3.5 |
| Dimension · Unit Dimention (HxWxD) (mm) | 230 x 555 x 540 | 280 x 555 x 540 |
| Dimension · Panel Dimension (HxWxD) (mm) | 60 x 625 x 640 | 60 x 625 x 640 |
| Dimension · Discharge Dimension (WxD) (mm) | 320 x 60 | 320 x 60 |
| Unit Weight (Body/Panel) (kg) | 17.5/2.5 | 19/2.5 |
| Sound Level (Hi/Med Hi/Med/Mid Lo/Low) (dB(A)) | 42/25 | 43/35/25 |
| Piping Connections · Liquid Pipe/Gas Pipe (mm) | φ6.4/φ12.7 | φ6.4/φ12.7 |
| Piping Connections · High and Low Pressure Pipe (mm) | φ9.5 | φ9.5 |
| Piping Connections · Condensate Drain Pipe (mm) | PVC26(0.Dφ26/I.D.φ20) | PVC26(0.Dφ26/I.D.φ20) |
| Decorative Panel | BYEKP20AY1E | BYEKP28AY1E |
| Wired Remote Controller | BRC63A622 | BRC63A622 |
