Efisiensi Tinggi
Unit ini menggunakan scroll compressor berefisiensi tinggi serta teknologi hemat energi yang inovatif, dan memiliki nilai IPLV hingga 4,75.
Water Cooled (UCCP)

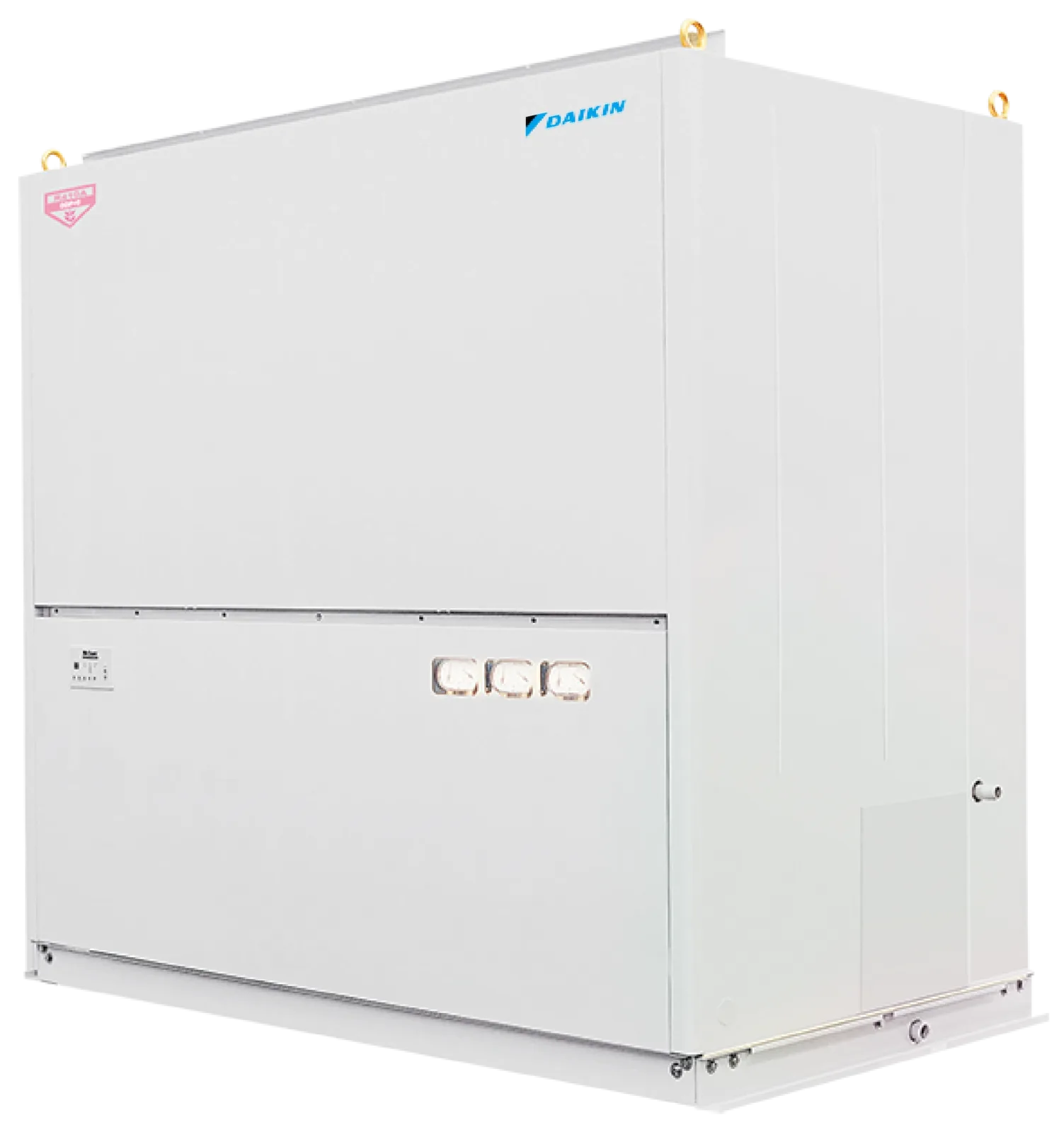

Water Cooled Packaged Series
Water Cooled (UCCP)
DAIKIN water cooled packaged ini mengadopsi teknologi pendingin udara terkini dari Daikin serta menggunakan refrigeran R410A yang ramah lingkungan. Dengan konsumsi energi yang rendah, unit ini menawarkan fleksibilitas penerapan, pengoperasian yang aman dan andal, serta sistem kendali cerdas. Unit ini dapat digunakan secara luas dalam berbagai lingkungan industri maupun komersial, seperti pabrik, pusat perbelanjaan, gedung perkantoran, sekolah, dan pusat pameran.
- Teknologi
- Packaged AC
Fitur Unggulan
Aplikasi Fleksibel
Semua model tersedia dengan berbagai tingkat tekanan statis, sementara *air plenum* (ruang udara) opsional tersedia untuk model UCCP18BP~UCCP75BP guna mendukung berbagai jenis penerapan. Pemanas elektrik tersedia sebagai pilihan tambahan.
Aman & Andal
Unit UCCP memiliki delapan fungsi perlindungan, yang dapat memberikan perlindungan menyeluruh bagi unit maupun sistem itu sendiri.
Spesifikasi Teknis
| Parameter | UCCP18BP | UCCP30BP | UCCP35BP | UCCP55BP | UCCP75BP | UCCP85BP | UCCP100BP | UCCP120BP | UCCP135BP | UCCP150BP | UCCP170BP | UCCP190BP | UCCP210BP |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Cooling Capacity W | 16,500 | 25,000 | 32,000 | 51,000 | 72,500 | 85,000 | 95,000 | 117,000 | 135,000 | 155,000 | 168,000 | 188,000 | 205,000 |
| Nominal Cooling Power Input W | 4,160 | 7,100 | 9,000 | 13,000 | 20,300 | 22,500 | 24,500 | 27,500 | 33,500 | 38,500 | 42,500 | 47,000 | 53,000 |
| Air Flow m³/h | 2,880 | 4,200 | 6,800 | 8,000 | 1,150 | 1,400 | 17,000 | 19,800 | 21,500 | 24,600 | 26,000 | 28,800 | 33,000 |
| Standard External Static Pressure Pa | 80 (10) | 100 (10) | 100 (10) | 150 (10) | 150 (10) | 200 | 250 | 250 | 300 | 300 | 350 | 350 | 350 |
| Optional External Static Pressure Pa | 50/100 | 50/150 | 50/200 | 100/200 | 200/250 | 300/400 | 150/350 | 150/350 | 200/450 | 200/450 | 200/400/500 | 200/400/500 | 200/400/500 |
| Sound Pressure Level dB(A) | 52 | 63 | 65 | 67 | 70 | 72 | 74 | 75 | 76 | 77 | 77 | 78 | 79 |
| Capacity Adjust Stage % | 100, 0 | 100, 50, 0 | 100, 50, 0 | 100, 67, 33, 0 | 100, 50, 0 | 100, 78, 61, 39, 22, 0 | 100, 78, 61, 39, 22, 0 | 100, 67, 33, 0 | 100 , 88, 71, 57, 43, 29, 14, 0 | 100, 50, 0 | 100, 85, 55, 44, 11, 0 | 100, 80, 60, 40, 20, 0 | 100, 91, 82, 73, 63, 54, 45, 36, 27, 18, 9, 0 |
| Power Supply | 380-415V/3N-/50Hz | 380-415V/3N-/50Hz | 380-415V/3N-/50Hz | 380-415V/3N-/50Hz | 380-415V/3N-/50Hz | 380-415V/3N-/50Hz | 380-415V/3N-/50Hz | 380-415V/3N-/50Hz | 380-415V/3N-/50Hz | 380-415V/3N-/50Hz | 380-415V/3N-/50Hz | 380-415V/3N-/50Hz | 380-415V/3N-/50Hz |
| Refrigerant Type | R410A | R410A | R410A | R410A | R410A | R410A | R410A | R410A | R410A | R410A | R410A | R410A | R410A |
| Compressor Type | Fully hermetic scroll type | Fully hermetic scroll type | Fully hermetic scroll type | Fully hermetic scroll type | Fully hermetic scroll type | Fully hermetic scroll type | Fully hermetic scroll type | Fully hermetic scroll type | Fully hermetic scroll type | Fully hermetic scroll type | Fully hermetic scroll type | Fully hermetic scroll type | Fully hermetic scroll type |
| Compressor (Qty.) Set | 1 | 2 | 2 | 2 | 2 | 3 | 3 | 2 | 3 | 2 | 3 | 3 | 4 |
| Condenser Type | Tube in tube | Tube in tube | Tube in tube | Tube in tube | Tube in tube | Shell and tube | Shell and tube | Shell and tube | Shell and tube | Shell and tube | Shell and tube | Shell and tube | Shell and tube |
| Condenser (Water Flow) m³/h | 3.55 | 5.38 | 6.88 | 10.97 | 15.59 | 18.28 | 20.43 | 25.16 | 29.03 | 33.33 | 36.12 | 40.42 | 44.08 |
| Condenser (Water Pressure Drop) kPa | 53 | 32 | 60 | 60 | 64 | 25 | 28 | 52 | 48 | 54 | 52 | 50 | 57 |
| Evaporator Type | Finned | Finned | Finned | Finned | Finned | Finned | Finned | Finned | Finned | Finned | Finned | Finned | Finned |
| Throttle Mode | Capillary tube | Capillary tube | Capillary tube | Capillary tube | Capillary tube | Capillary tube | Capillary tube | Capillary tube | Capillary tube | Capillary tube | Capillary tube | Capillary tube | Capillary tube |
| Fan Type | Centrifugal low-noise double-air-inlet | Centrifugal low-noise double-air-inlet | Centrifugal low-noise double-air-inlet | Centrifugal low-noise double-air-inlet | Centrifugal low-noise double-air-inlet | Centrifugal low-noise double-air-inlet | Centrifugal low-noise double-air-inlet | Centrifugal low-noise double-air-inlet | Centrifugal low-noise double-air-inlet | Centrifugal low-noise double-air-inlet | Centrifugal low-noise double-air-inlet | Centrifugal low-noise double-air-inlet | Centrifugal low-noise double-air-inlet |
| Fan Drive Method | V-belt transmission | V-belt transmission | V-belt transmission | V-belt transmission | V-belt transmission | V-belt transmission | V-belt transmission | V-belt transmission | V-belt transmission | V-belt transmission | V-belt transmission | V-belt transmission | V-belt transmission |
| Filter (Dimension) mm | 797 x 625 | 877 x 625 | 917 x 795 | 1,277 x 760 | 1,597 x 805 | 527 x 653 | 561 x 653 | 594 x 653 | 661 x 653 | 661 x 653 | 661 x 757 | 741 x 779 | 822 x 779 |
| Filter (Qty.) Pcs | 1 | 1 | 1 | 1 | 1 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Outline Dimension (Length) mm | 1,175 | 1,175 | 1,175 | 1,585 | 1,585 | 1,905 | 2,000 | 2,180 | 2,380 | 2,380 | 2,380 | 2,620 | 2,860 |
| Outline Dimension (Width) mm | 660 | 660 | 660 | 730 | 830 | 1,055 | 1,055 | 1,055 | 1,055 | 1,215 | 1,215 | 1,215 | 1,215 |
| Outline Dimension (Height) mm | 1,600 (1,880) | 1,600 (1,880) | 1,880 (2,150) | 1,900 (2,160) | 1,985 (2,350) | 1,985 | 1,985 | 1,985 | 1,985 | 1,985 | 2,060 | 2,060 | 2,060 |
| Weight of cooling only unit kg | 205 (220) | 260 (275) | 310 (325) | 440 (470) | 560 (600) | 770 | 805 | 835 | 925 | 1,005 | 1,155 | 1,240 | 1,395 |
| Models of cooling only unit with electric heater | UCCP18BDP | UCCP30BDP | UCC35BDP | UCCP55BDP | UCCP75BDP | UCCP85BDP | UCCP100BDP | UCCP120BDP | UCCP135BDP | UCCP150BDP | UCCP170BDP | - | - |
| Electrical heating capacity W | 6,000 | 9,000 | 1,200 | 21,000 | 27,000 | 36,000 | 42,000 | 48,000 | 48,000 | 60,000 | 60,000 | 55,000 (HD55A) | 55,000 (HD55A) |
| Heating Power Input W | 6,370 (6,370) | 10,100 (10,100) | 13,500 (14,200) | 23,200 (23,900) | 29,200 (30,000) | 40,000 | 46,000 | 53,500 | 55,500 | 67,500 | 71,000 | 66,000 | 66,000 |
| Weight of unit with electric heater kg | 210 (225) | 270 (285) | 325 (340) | 460 (490) | 585 (625) | 810 | 850 | 885 | 975 | 1,060 | 1,210 | - | - |
