Packaged (CRH-D )

Horizontal Water Source Heat Pump

CRH-D

Water source heat pump CRH-D series use environmental refrigerant R410A. R410A is higher volumetric capacity, w/o element of Cl, improving the efficiency, not destroying the ozone layer.

Technology
Packaged AC
Horizontal Water Source Heat Pump

Key Features

High Efficiency

DAIKIN adopt ACOP to identify water source heat pump efficiency. ACOP is Integrated cooling and heating Coefficient of Performance for the whole year. The Highest ACOP is 4.73 (for CRH040DRP) which is higher beyond national standard (GB) 4.2. ACOP=0.56*EER+0.44*COP EER=cooling capacity/cooling input power, COP=heating capacity/heating input power

Flexible Application

DAIKIN CRH-D series (1HP-7HP) take use of high-performance fan motor. For 8HP-15HP units, 4 types of ESP option is provided to meet air supply requirement.

Safe and Reliable

CRH-D series are designed with multiple protections: the high and low pressure protection, water leakage protection and circulating water temperature protection.

Technical Specifications

ParameterCRH010DRPCRH015DRPCRH020DRPCRH025DRPCRH030DRPCRH040DRPCRH050DRPCRH060DRPCRH070DRPCRH080DRPCRH0100DRPCRH125DRPCRH150DRP
Nominal Cooling Capacity W2,7504,3005,2506,6509,20010,20013,20017,00019,00025,00030,80033,50037,500
Nominal Heating Capacity W3,2704,9006,1007,10010,10011,20013,50018,80021,50025,00033,00035,50045,000
Air Flow Rate m²/h5808001,0501,2501,7001,9002,3002,8003,4005,0006,0007,0008,000
Power Supply 220-240V-/50Hz220-240V-/50Hz220-240V-/50Hz220-240V-/50Hz220-240V-/50Hz220-240V-/50Hz380-415V/3N-/50Hz380-415V/3N-/50Hz380-415V/3N-/50Hz380-415V/3N-/50Hz380-415V/3N-/50Hz380-415V/3N-/50Hz380-415V/3N-/50Hz
ESP Pa20303030303050505080(50/100/150)100(80/150/200)100(80/150/200)150(100/200/250)
Dimension (L x W x H) mm895 x 520 x 375895 x 520 x 3901,265 x 655 x 4351,265 x 705 x 4351,035 x 745 x 5201,175 x 745 x 5201,265 x 790 x 5201,265 x 790 x 5201,670 x 855 x 5201,756 x 1,000 x 6601,760 x 1,150 x 7081,970 x 1,150 x 7082,226 x 1,200 x 736
Condenser . Type Tube in Tube Heat ExchangerTube in Tube Heat ExchangerTube in Tube Heat ExchangerTube in Tube Heat ExchangerTube in Tube Heat ExchangerTube in Tube Heat ExchangerTube in Tube Heat ExchangerTube in Tube Heat ExchangerTube in Tube Heat ExchangerTube in Tube Heat ExchangerTube in Tube Heat ExchangerTube in Tube Heat ExchangerTube in Tube Heat Exchanger
Condenser . Water Flow Rate m³/h0.610.921.121.421.982.192.843.664.225.236.627.117.78
Condenser . Water Pressure Drop kPa13303460353438636173515565
Condenser . Water Pipe Connection inchR3/4R3/4R3/4R3/4R3/4R3/4R3/4R3/4R1R1-1/4R3/4R3/4Rc1-1/4
Compressor RotaryRotaryRotaryRotaryRotaryRotaryScrollScrollScrollScrollScrollScrollScroll
Rated Power (Cooling) W7001,0401,2201,5202,2002,2503,1004,4704,9005,6008,1008,5009,450
Rated Power (Heating) W7401,1501,2801,5402,4002,2503,2904,7004,8005,4008,7008,10010,300
Rated Current (Cooling) A3.384.915.937.4610.2510.916.787.828.6311.4516.4015.8917.78
Rated Current (Heating) A3.455.255.957.5411.0411.106.938.228.4111.1117.2814.4618.89
Condensate Drain Pipe mmФ20Ф20Ф20Ф20Ф20Ф20Ф20Ф20Ф20R1R1R1R1
Refrigerant Type R410AR410AR410AR410AR410AR410AR410AR410AR410AR410AR410AR410AR410A
Refrigerant Charge kg0.740.721.351.461.051.611.51.92.83.52.73.0 x 23.7 x 2
Sound Pressure Level dB(A)34414045444447495455555960
Weight kg5660101103108120150157208245300375450

Related Products

Duct Type (FDR)

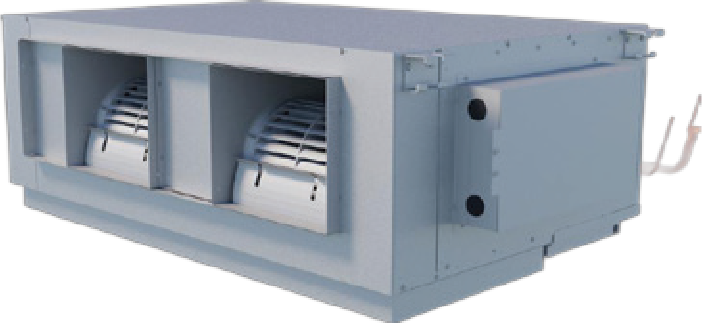

Duct Type Packaged Inverter
Energy SavingFlexible DesignNighttime Quite Operation

Duct Type Packaged Inverter

FDR-QY1(4)

Concealed high static pressure ducted Packaged AC unit for long duct runs.

UATQ-C Series
Air-Cooled Rooftop Package
High EfficiencyWide Operating RangeFlat Top Design

Air-Cooled Rooftop Package

UATQ-C Series

Equipped with a high-efficiency scroll compressor, an optimized heat exchanger, and a high-performance fan, the unit delivers optimal performance in both standard and high ambient temperatures.

Static Blower (FDN-H & FGN-H)
Ducted Split Static Blower
Tough CasingWide Capacity RangeConvertible Air Through Direction

Ducted Split Static Blower

FDN-H & FGN-H

This is a commercial ducted split-type air conditioning system that uses R410A refrigerant and is specifically designed for commercial spaces such as factory, mall and warehouse.

Duct Connection (FVPR)

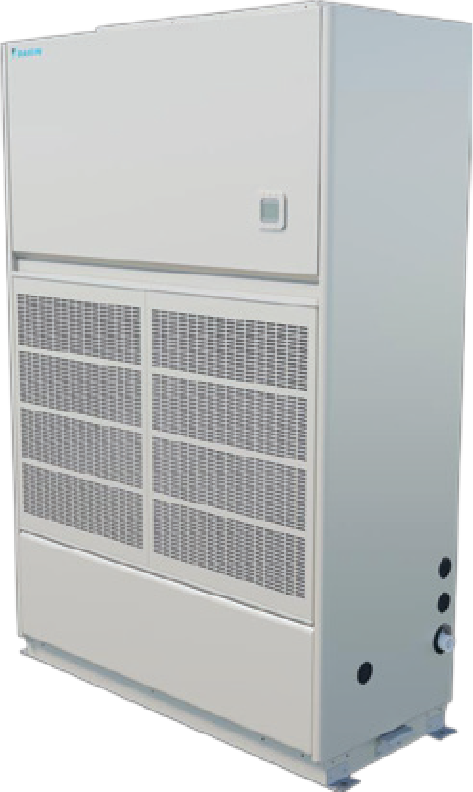

Floor Standing Type - Duct Connection
