Better Energy Saving
The efficiency is tremendously improved by 33% from previous R410A Non Inverter models for better energy saving
Inverter

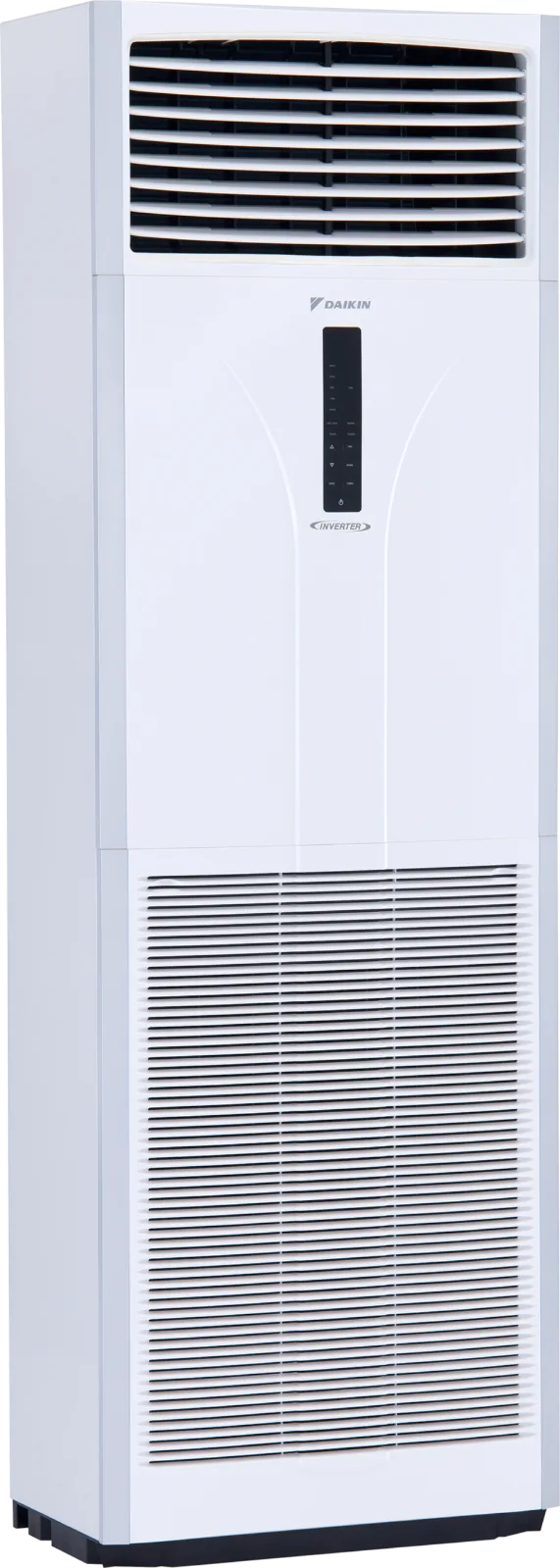

Floor Standing (FVFC)
SkyAir Inverter
This game changing refrigerant strikes the perfect balance between energy efficiency, ease of use and environmental sustainability; offering distinct advantages across the board, bringing you comfort and a peace of mind.
- Technology
- SkyAir
Key Features
High Air Flow
Ensures the spaces of the room to be cooled down rapidly to the set temperature
Easy Maintenance
It comes with a keylock function to prevent setting change from unauthorized personnel
Technical Specifications
| Parameter | SVFC71A | SVFC85A | SVFC100A | SVFC125A | SVFC140A |
|---|---|---|---|---|---|
| Indoor Unit | FVFC71A | FVFC85A | FVFC100A | FVFC125A | FVFC140A |
| Outdoor Unit | RZFC71A | RZFC85A | RZFC100A | RZFC125A | RZFC140A |
| Batas Operasional C | 21 - 46 | 21 - 46 | 21 - 46 | 21 - 46 | 21 - 46 |
| Cooling Capacity (Min. - Max.) Btu/h | 24,200 (10,900-27,300) | 29,000 (14,300-31,000) | 34,100 (17,100-38,200) | 42,700 (18,200-46,500) | 46,600 (18,200 -49,000) |
| kW | 7.10 (3.20-8.00) | 8.50 (4.20-9.10) | 10.00 (5.00 - 11.20) | 12.50 (5.30-13.60) | 13.60 (5.30-14.40) |
| EER W/W | 3.05 | 3.01 | 3.01 | 2.77 | 2.70 |
| CSPF Wh/Wh | 4.27 | 4.20 | 4.10 | 4.25 | 4.10 |
| Total Power Input W | 2,330 | 2,820 | 3,320 | 4,520 | 5,045 |
| Total Current A | 10.20 | 12.60 | 14.60 | 7.00 | 7.77 |
| Power Supply V/Ph/Hz | 220-240/1/50 | 220-240/1/50 | 220-240/1/50 | 380-415/3/50 | 380-415/3/50 |
| - | - | Power from Outdoor | - | - | |
| Indoor . Air Flow (H/M/L) cfm | 675/625/530 | 1,000/835/650 | 1,090/975/860 | 1,240/1,144/1,040 | 1,240/1,144/1,040 |
| Indoor . Sound Pressure Level (H/M/L) dB(A) | 44/42/39 | 47/44/41 | 49/47/44 | 53/51/49 | 53/51/49 |
| Indoor . Unit Dimension (Unit) mm | 1,850 x 600 x 270 | 1,850 x 600 x 350 | 1,850 x 600 x 350 | 1,850 x 600 x 350 | 1,850 x 600 x 350 |
| Indoor . Unit Dimension (Packaging) mm | 760 x 1,998 x 418 | 760 x 1,998 x 498 | 760 x 1,998 x 498 | 760 x 1,998 x 498 | 760 x 1,998 x 498 |
| Indoor . Machine Weight (Unit) kg | 42 | 45 | 45 | 45 | 48 |
| Indoor . Machine Weight (Gross) kg | 54 | 58 | 58 | 58 | 61 |
| Outdoor . Sound Pressure Level dB(A) | 52 | 53 | 54 | 54 | 56 |
| Outdoor . Dimension (HxWxD) Unit mm | 615 x 845 x 300 | 695 x 930 x 350 | 695 x 930 x 350 | 990 x 940 x 320 | 990 x 940 x 320 |
| Outdoor . Dimension (HxWxD) Packaging mm | 679 x 992 x 414 | 760 x 1,084 x 473 | 760 x 1,084 x 473 | 1,126 x 1,003 x 396 | 1,126 x 1,003 x 396 |
| Outdoor . Machine Weight (Unit) kg | 37 | 40 | 40 | 62 | 62 |
| Outdoor . Machine Weight (Gross) kg | 41 | 45 | 45 | 68 | 68 |
| Pipe Connection (Liquid) mm | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 |
| Pipe Connection (Gas) mm | 15.9 | 15.9 | 15.9 | 15.9 | 15.9 |
| Max. Piping Length m | 30 | 50 | 50 | 50 | 50 |
| Max. Piping Elevation m | 15 | 30 | 30 | 30 | 30 |
| Heat Insulation | Both Liquid and Gas Piping | Both Liquid and Gas Piping | Both Liquid and Gas Piping | Both Liquid and Gas Piping | Both Liquid and Gas Piping |
Related Products
Inverter
Comfortable AirflowQuiet ModeRefrigerant R32

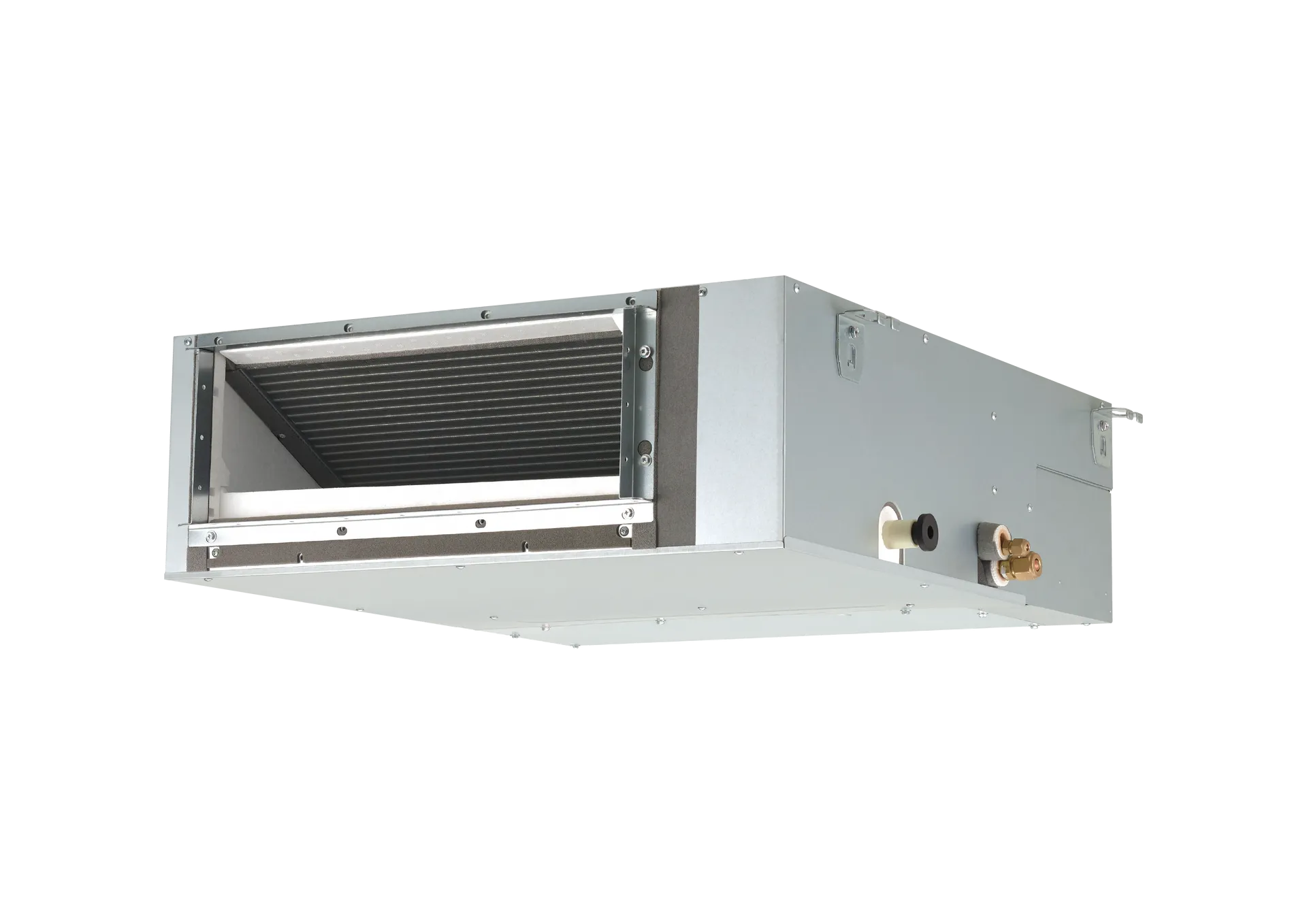

Duct Connection Low Static Pressure - Width Compact (FDBF)
Hidden Concealed Duct
- Capacity
- 2 – 6 PK
- Power
- 1.500W – 5.300W
Blends perfectly with interior design, with no visible AC unit on the wall or ceiling.
Inverter
Energy Saving360° AirflowEasy Maintenance

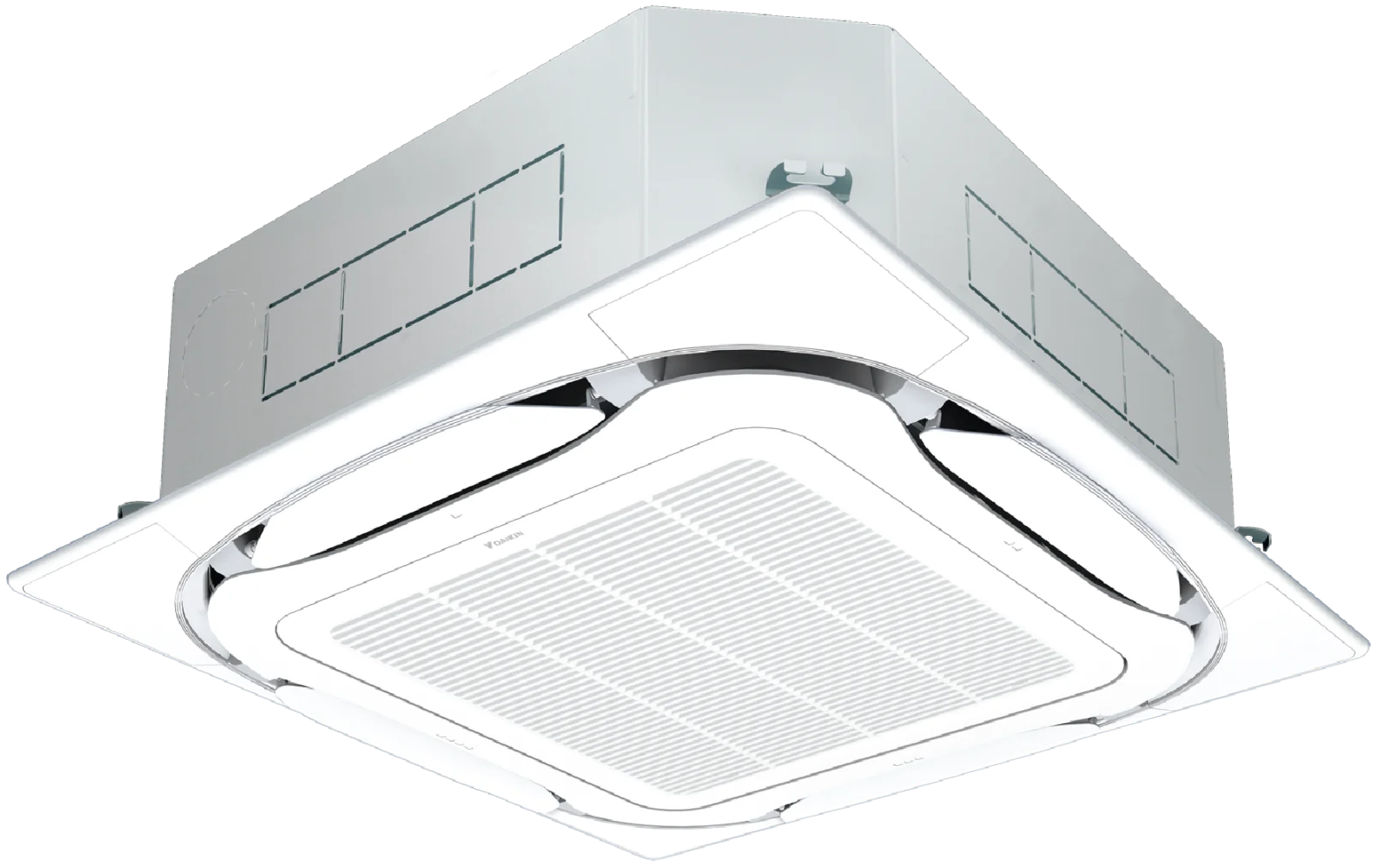

Ceiling Mounted Cassette Round Flow (FCFC)
Ceiling Cassette Round Flow
Energy-saving round flow ceiling Cassette AC with a cleanliness sensor and smart temperature control.
Inverter
Energy SavingComfortable AirflowEasy Maintenance

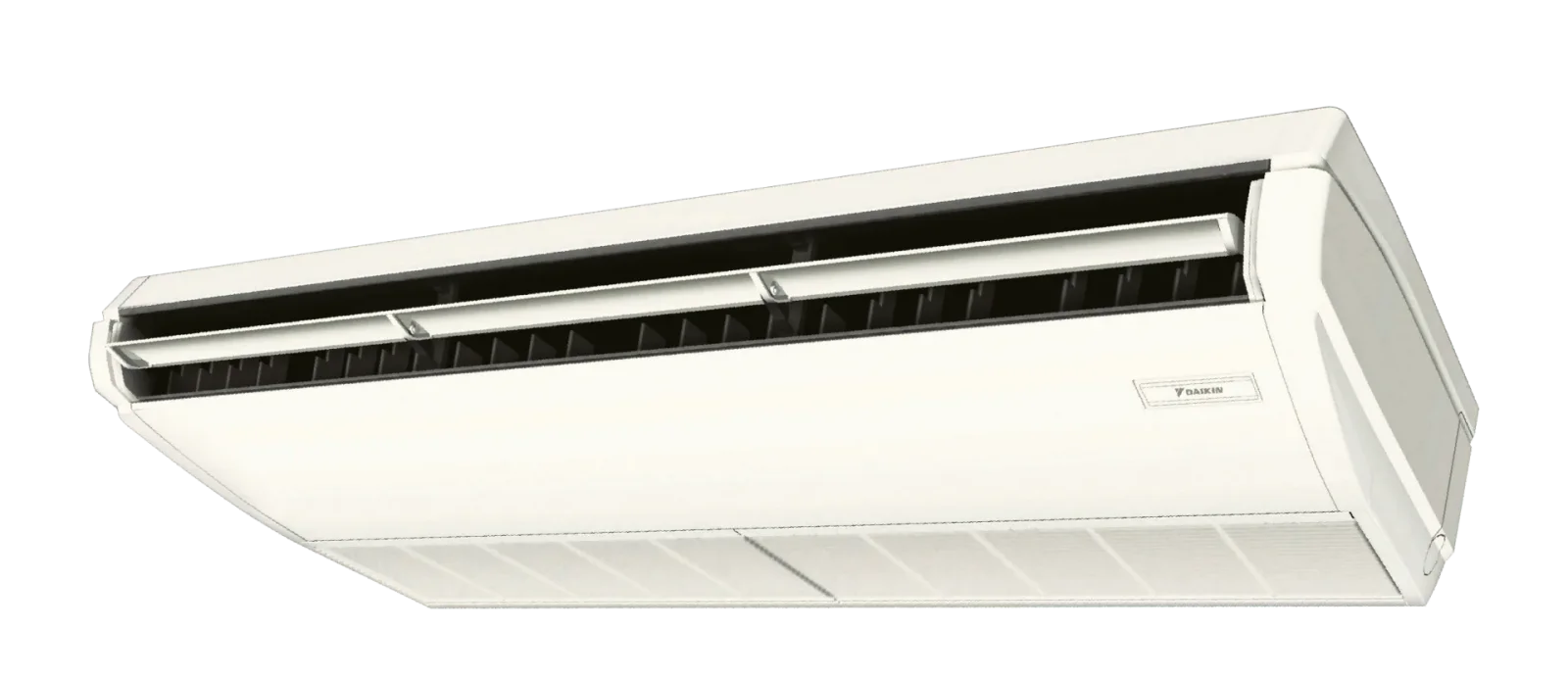

Ceiling Suspended (FHFC)
Ceiling Suspended
Ceiling AC that needs no dedicated ceiling cavity, with long-reach airflow and low power consumption.
Inverter
Energy SavingCompact DesignComfortable Airflow

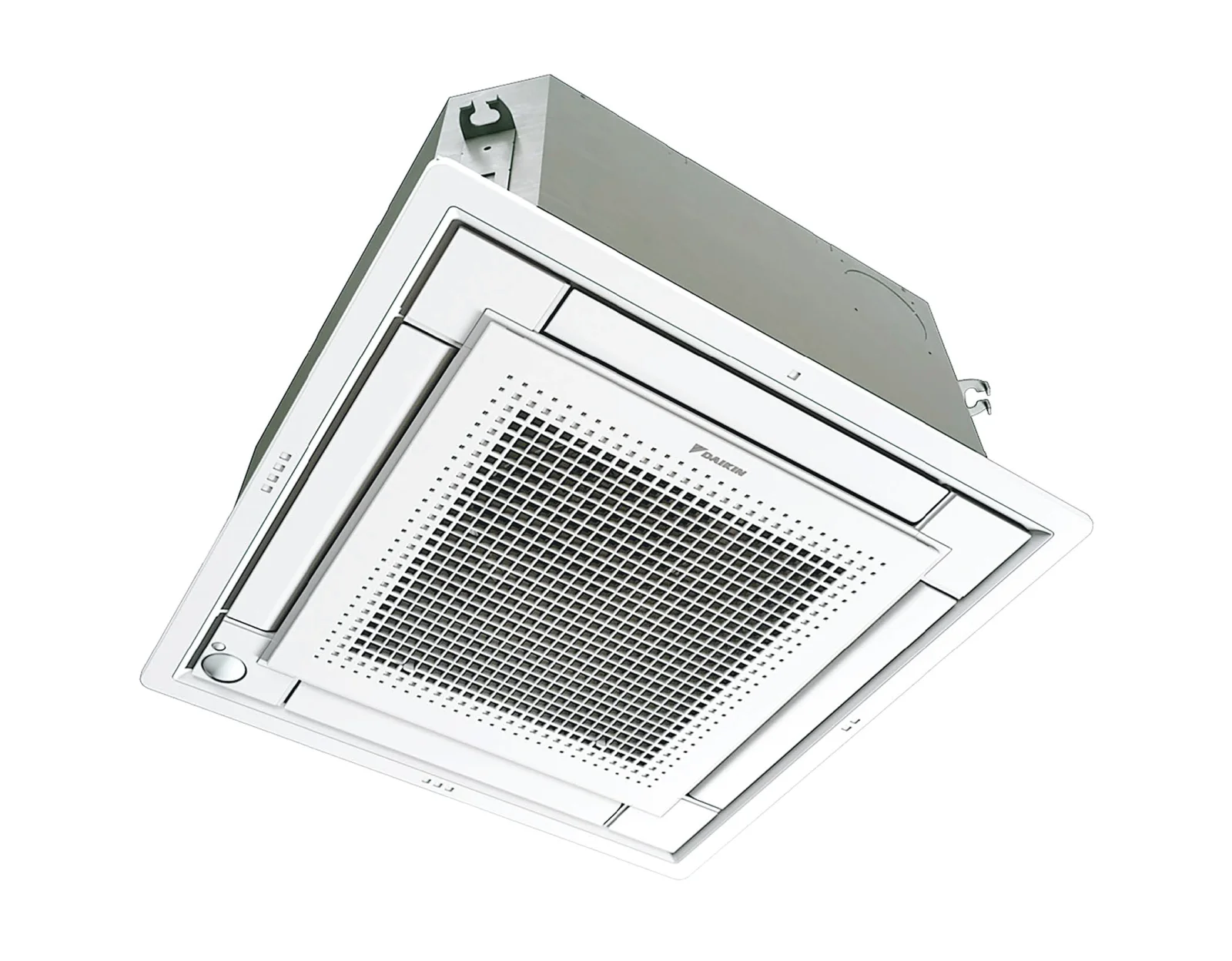

Compact Multi Flow Cassette (FFFC)
